Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd.is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company. The company has its own brand of CNC lathes, machining centers,
sawing machines,
drilling machines,
grinding machines, metal forming machine tools, special machine customization and other full series of machine tool products, serving the machining industry for many years, has a strong after-sales service team, not only for their own product after-sales service, but also undertake various machine tool maintenance, service in place in time.

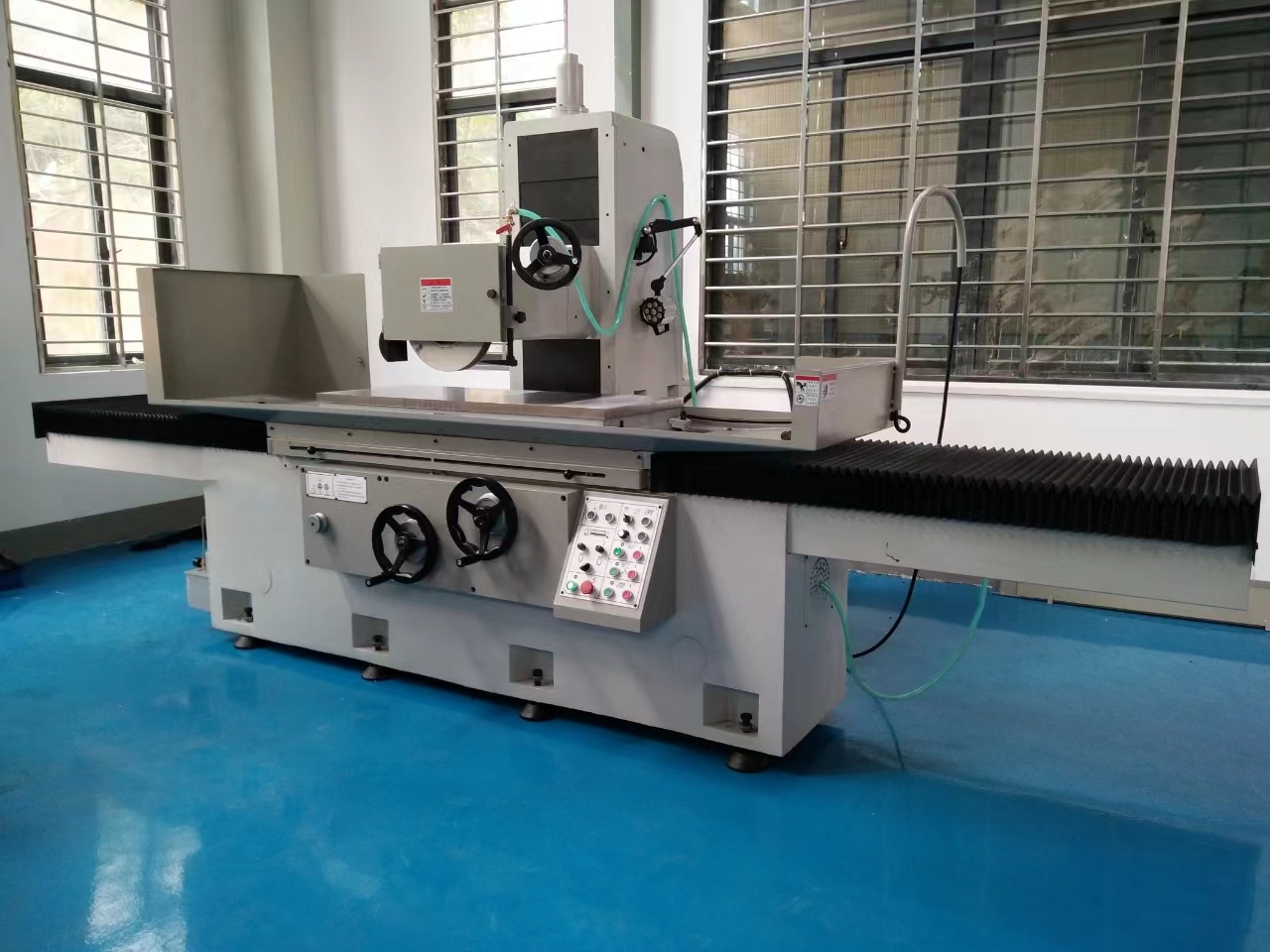

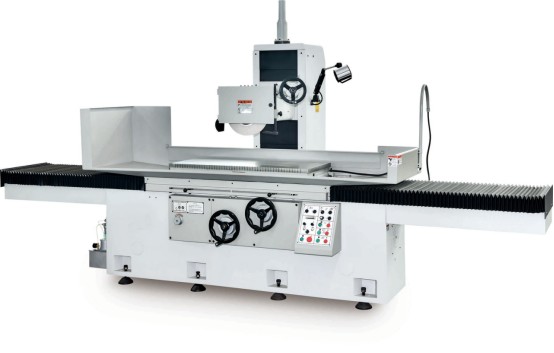

The main castings of the machine are cast with high rigidity and high-grade cast iron, and the interior is specially treated, and the high stability mineral is poured and the special binder is mixed. The slide is pasted with wear-resistant resin sheet and spatulated with precision. It not only slides smoothly and wear-resistant, but is most suitable for forming and grinding. This machine adopts Taiwan direct spindle, P4 super precision ball bearing, low noise, no vibration, high torque at high speed.
(1) High rigidity castings
The main castings of the machine: table, saddle, column and frame, are made of high-grade castings, and special annealing treatment, to ensure long-term stability of mechanical accuracy.
(2) wear-resistant slide
The frame and saddle slide are designed in double V shape, with good sliding guidance and no dragging. Both are affixed with a wear-resistant slide (TURCITE-B), and then subjected to precision spatula operation to ensure light movement and accurate accuracy.
(3) High-performance columns
H-shaped structure with high rigidity, and the use of rising screw design, to ensure the accuracy of the finished product.
(4) Direct spindle
The use of ultra-precision ball bearings, nose tilt guaranteed within 2um, sealed grease lubrication maintenance is simple and can be used for a long time.
(5) Automatic lubrication system
Using electromagnetic pump forced oil injection automatic circulation, to provide the best lubrication effect of each screw and each sliding surface.
(6) Taiwan produced precision guide screw lift and front and back screw after heat treatment, and then after grinding processing, to ensure the long-term use of precision unchanged.
