Technical specification
Features:
AHD left and right hydraulic, front and rear automatic, up and down PLC servo control
Main uses of the equipment:
The grinding machine is mainly used to grind steel, cast iron and non-ferrous metals and other materials around the grinding wheel.
According to the material and shape of the workpiece, different clamping and positioning methods can be used. General plane, can be used electromagnetic sucker or directly fastened to the work table for grinding; Flat surface, right Angle surface, arbitrary Angle, cylindrical end face and some other special shapes, can be grinding on the fixture or multi-functional strong electromagnetic chuck.

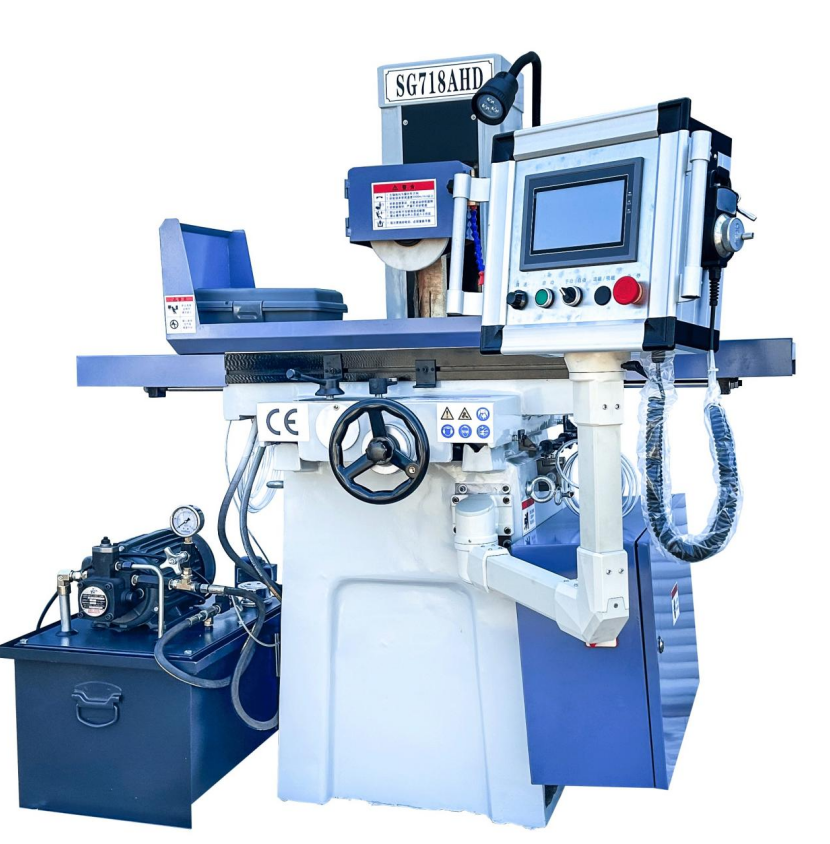

Structure of the equipment:
(1) The overall layout of the equipment
2. The grinding wheel of the grinding wheel holder is cooled by an independent cooling system with a coolant nozzle on each grinding wheel and an independent cooling water tank at one end of the device.
3. At one end of the grinder bed, there is an independent lubrication control tank. The lubrication system continuously lubricates the guide rail moving on the table.
(2) The main mechanical structure characteristics of the grinder
Note: 1. Grey cast iron HT250 with good strength, wear resistance and heat resistance and good vibration damping performance is used in the main structure. The interior is reasonably wired to enhance the rigidity. X axis (table) with manual drive for reciprocating movement; Y-axis (front and rear direction) adopts the support plate and the ball screw for reciprocating movement; The Z axis (grinding head) drives the "T" type screw through the worm gear for reciprocating movement to ensure the accuracy of the feed;
(3) guide way form
Note: Using a "V" and a "flat" iron-plastic guide rail;
(4) Grinding wheel frame structure
Note: the grinding wheel frame adopts double-layer fabric to ensure its rigidity; The downward movement of the grinding head adopts skateboard structure, which can avoid inaccurate feed due to long working life;
(5) The electrical system of the whole machine is controlled by multiple electrical groups. And the following points:
1 >, safety protection (mechanical interlock) refers to the interlock between the upper and lower feed and the grinding wheel rotation, only when the grinding wheel rotation can feed, can effectively prevent unnecessary losses caused by human operation;
2 >,( 68495841, 64954817,circuit) overload means that the circuit exceeds the full load value without fault;
3 > Emergency stop refers to the operation that needs to be stopped in a certain emergency situation;
4 >, the machine completed in line with GB5226.1-2002/IEC60204-1:2000 mechanical safety mechanical electrical equipment.

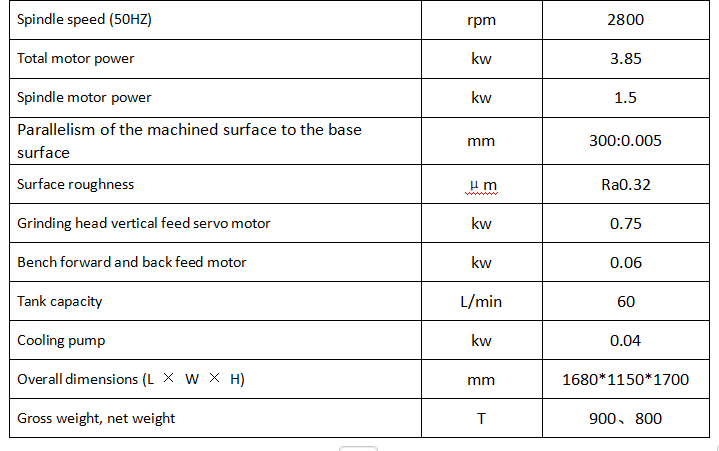

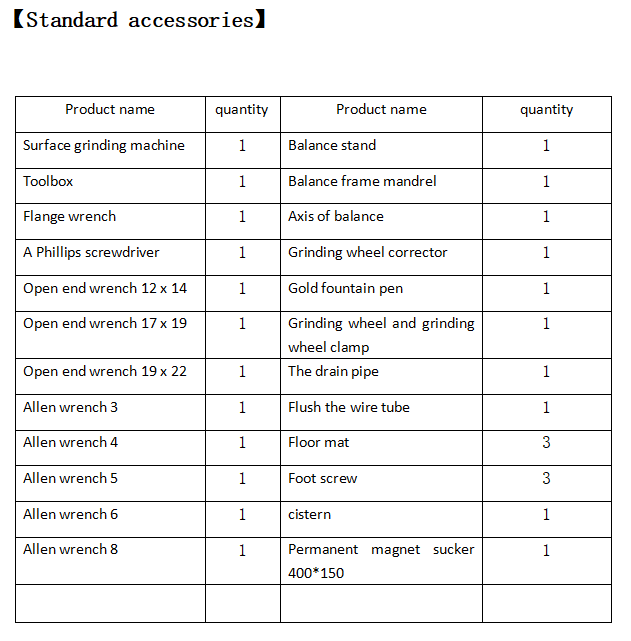

Parameter table:
