Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd. is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company. The company has its own brand of CNC
Lathe Machine, Machining Centers,
Sawing Machine, Drilling machine,
Grinding Machine, Metal Forming Machine Tools, Special Machine Customization and other full series of machine tool products.

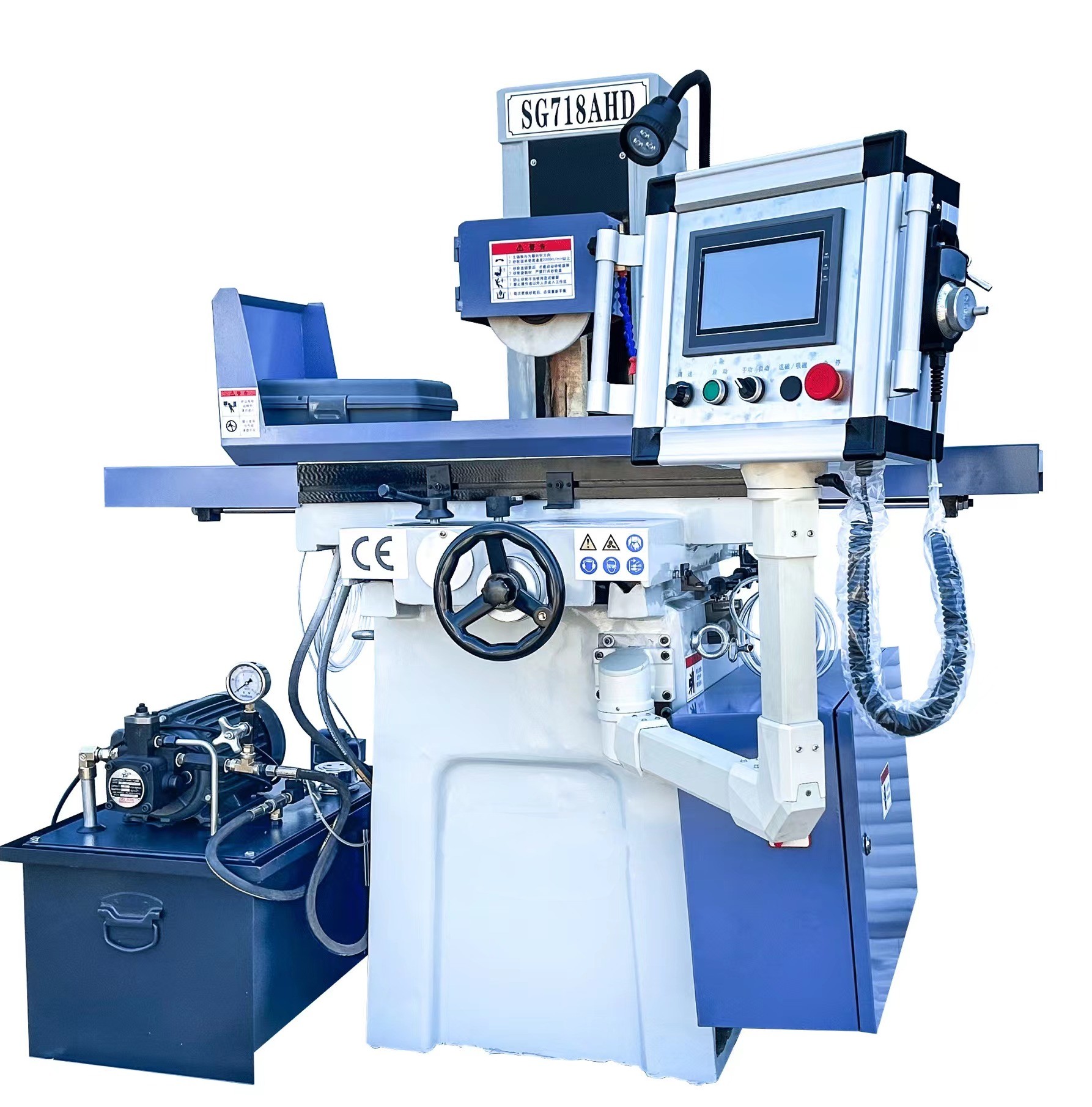

With wear-resistant belt and manual precision scraping, smooth movement, long precision life.
Carefully designed in line with the ergonomic bidirectional rotary press box, so that the operator is easier to find a comfortable operating position, improve work efficiency.
Standard grinding head lifting servo motor, controlled by PLC and man-machine interface, easy to achieve automatic grinding.
The control box is equipped with a standard man-machine operation interface, and the operator can easily control the automatic grinding. Fully embodies the friendly and humanized design of the machine tool.
(1) Good waterproof performance:
A: All the wall panels are installed, the cutting fluid and water flow are not above the main engine seat during work, and there is no water in the front and rear screw and the plane main engine seat on the main engine platform.
B. The left and right sides of the workbench are fully sealed. It effectively solves the problem that the two working guides are exposed when the workbench moves around in daily life, and it is easy to enter dirt and dust between the slide rail and the workbench rail. At present, only HUAMO adopts sealing measures.
C. The upper frame is fully sealed: the overall structure of the upper frame of the surface grinding machine of our company is fully sealed, except that the spindle motor is exposed (heat dissipation). The rest of the upper frame is not exposed anywhere.
(2) Lubricating oil circuit:
A, the lubricating oil road is very hidden, and domestic and foreign counterparts, the lubricating oil pipe is very exposed above the host seat, resulting in a small amount of cutting fluid and copper corrosion for a long time, will also cause the workpiece to hit the copper pipe. It will lead to the loss of oil and the lack of oil and finally the machine guide rail strain and overhaul, only my company in the lubricating oil road design to solve this hidden danger, all copper pipes are very hidden, from anti-corrosion to easy to comprehensively solve this hidden danger.
B, the grinder lubricating oil built-in → fundamentally solve the problem of not wasting lubricating oil, so that the lubricating oil can be recycled, and in the absence of lubricating oil around the workbench movement automatically stop and can not start the workbench movement oil pipe, after the lubricating oil is added, everything is normal. Although other domestic and foreign counterparts have lubricating oil built-in but no large wall panel will cause the cutting fluid to flow into the host and mix with the lubricating oil, affecting the grinding machine performance.
C, fully sealed protection resulting in no debris and dust mixed with lubricating oil and ensure that the lubricating oil is clean, can be recycled, lubricating oil because the upper frame is fully sealed, the workbench seal and then complete the large wall panel, and then through the internal butt of the machine tool, from the ideal built-in design, to the use of unprecedented perfect internal lubrication can be safely used, at present only my company's design structure Can have a full range of complete internal lubrication.
(3) Our company relies on the advantages of mature flat grinding technology, the overall structure of the grinder adopts the design concept of fixed grinding head, saddle-type bed, and repeated movement of the table around and before and after.
