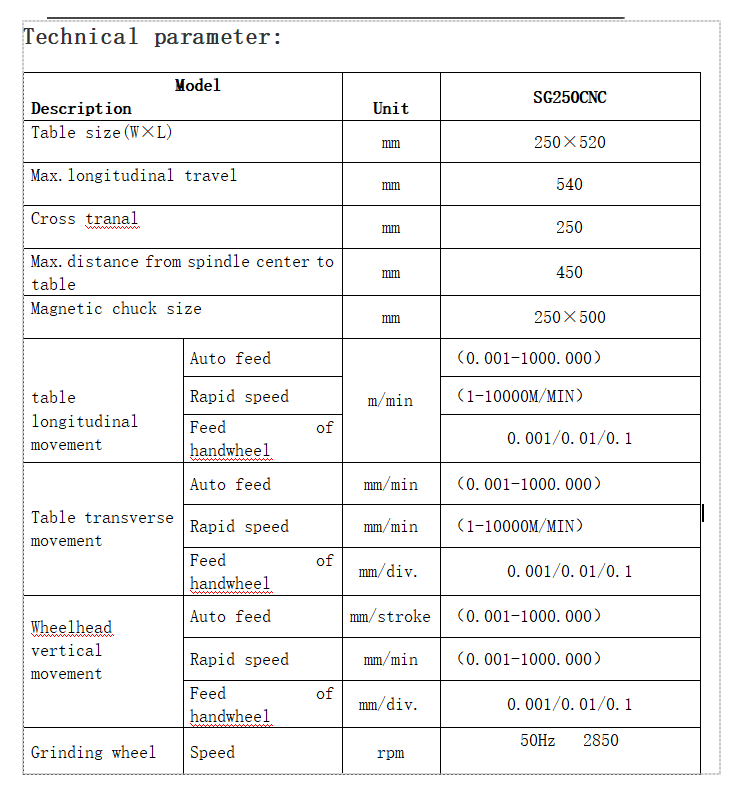

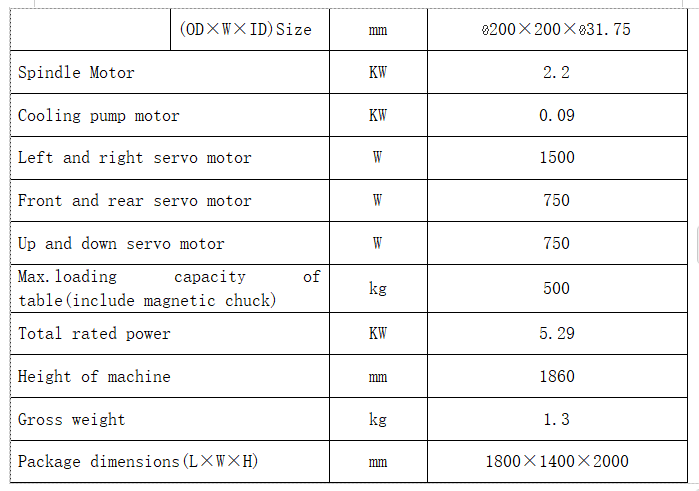

Product structure description
1. Mechanical structure:

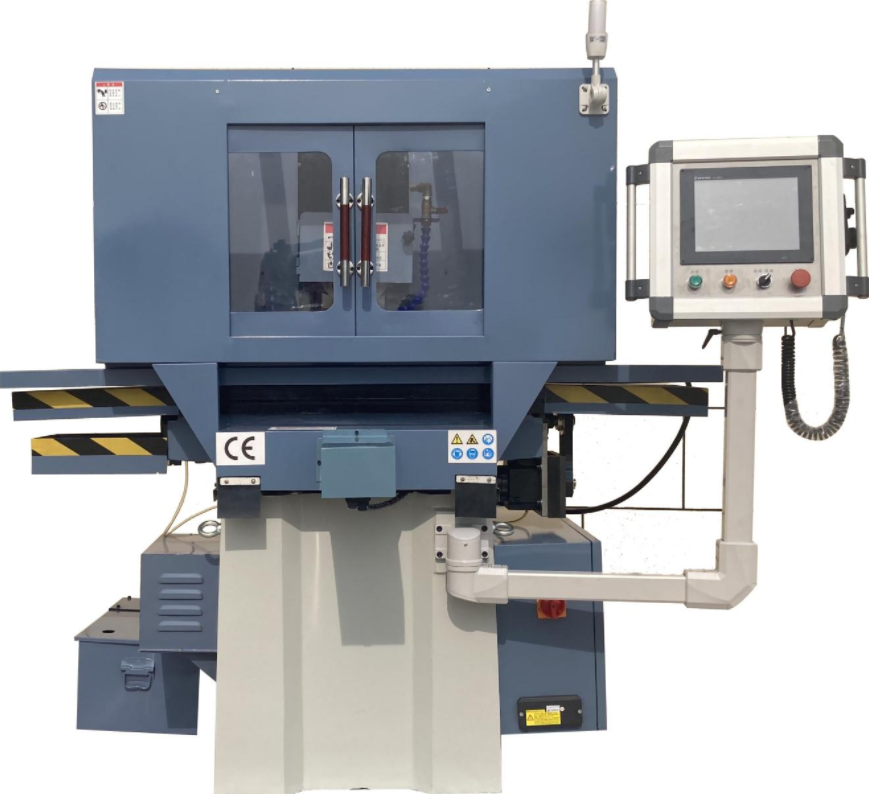

1) The overall layout of the grinding machine is a cross-drag mobile with excellent performance. The main movement includes the rotary movement of the horizontal grinding wheel spindle, the left and right longitudinal movement of the workbench (X axis), the front and back transverse movement of the drag plate (Y axis), and the vertical lifting movement of the grinding head body (Z axis).
2) The machine has good anti-vibration characteristics, precise motion characteristics, good structural rigidity and small thermal deformation characteristics; The moving parts of the machine have good rigidity and high feed sensitivity. The X, Y and Z axes adopt the pure mechanical mode of "servo motor + ball screw".
3)XYZ material precision ball screw, with high rigidity, precision positioning characteristics.
4)XYZ axis is driven by AC servo motor + ball screw, wherein Y axis repeated positioning accuracy is Y:0.02mm,Z axis repeated positioning accuracy is Z:0.01mm, machine tool lubrication system adopts fixed-point quantitative oil supply mode, lubricating oil tank with pressure and liquid level detection, system alarm to ensure that machine tool guide rail and lead screw do not lose oil.
5) The machine adopts an open protection structure, which is convenient for the knife and has good waterproof effect.
2, special grinding software company developed special grinding software, operators only need to input parameters can be automatic grinding, easy to learn, reduce the skill requirements of operators; Can be set coarse grinding, fine grinding, light grinding, can automatically repair sand (end face), to ensure the workpiece grinding roughness and dimensional accuracy consistency.

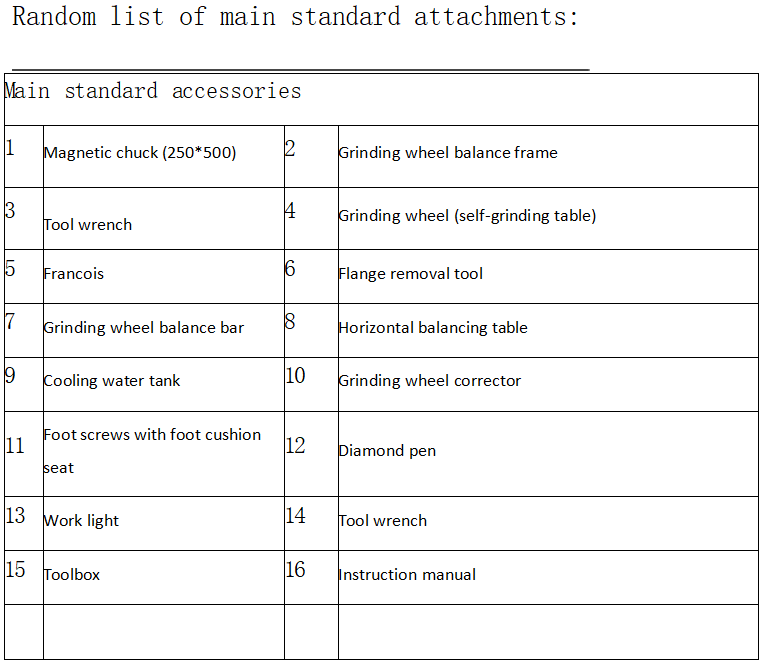

Acceptance method and acceptance standard
1. Machine acceptance is divided into pre-acceptance and final acceptance.
2. During the manufacturing process, Party A may come to Party B's site at any time to check the quality and brand of major parts, parts and machine bed assembly progress.
3. The machine tool shall be pre-accepted at Party B's site, and the geometric accuracy, working accuracy, performance, specification parameters and external quality of the machine tool shall be inspected.
4. The inspection of the performance, specifications and parameters of the machine tool shall be accepted according to the terms of the agreement.
6. Electrical equipment shall be implemented according to the standard of GB5226.1-2008 General Technical Conditions
