Product Manual for surface grinder of Model

Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd.is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company.    The company has its own brand of CNC lathes, machining centers, sawing machines, drilling machines, grinding machines, metal forming machine tools, special machine customization and other full series of machine tool products, serving the machining industry for many years, has a strong after-sales service team, not only for their own product after-sales service, but also undertake various machine tool maintenance, service in place in time.

1.Main purposes and features of machine tool

1.1 Main purposes of machine tool

The main purposes of this machine is to use periphery of grinding wheel to grind workpieces' plane and use head face to grind vertical plane of workpieces. According to different materials and shapes of workpieces, we can make workpieces be attracted firmly in magnetic chuck or fixed in the working table, and then grind it.

This machine tool is applicable to machining workshops and machine repairing workshops. It is used to grind steel, cast iron and non-ferrous metal parts.

1.2 Features of machine tool

Working table does longitudinal reciprocating feed motion in flat rail and v-type rail, and system presses drive.

Wheelhead does cross feed motion in dovetail rail.

Carriage and wheelhead do vertical feed motion in column rectangle rail.

Carriage and wheelhead also can rapid up and down automotively.

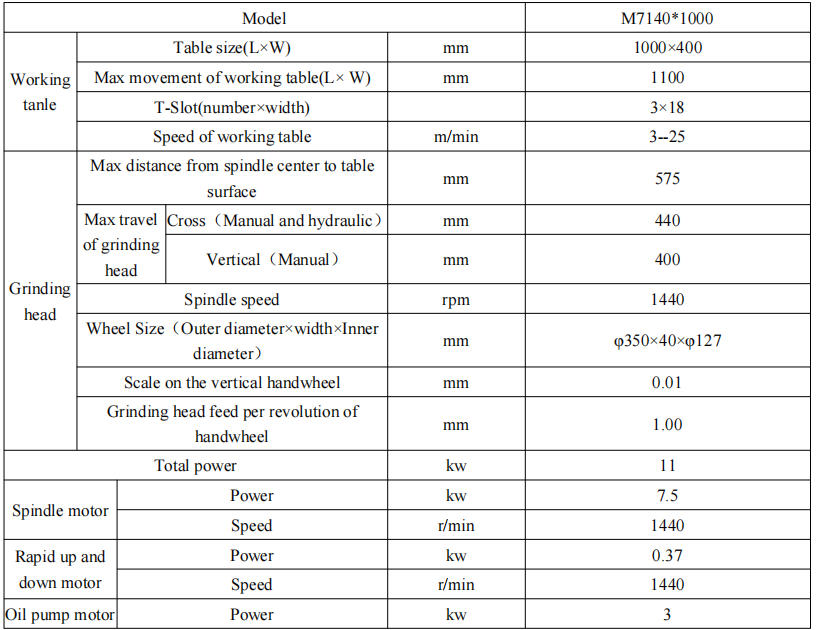

2.Main specifications and parameters
