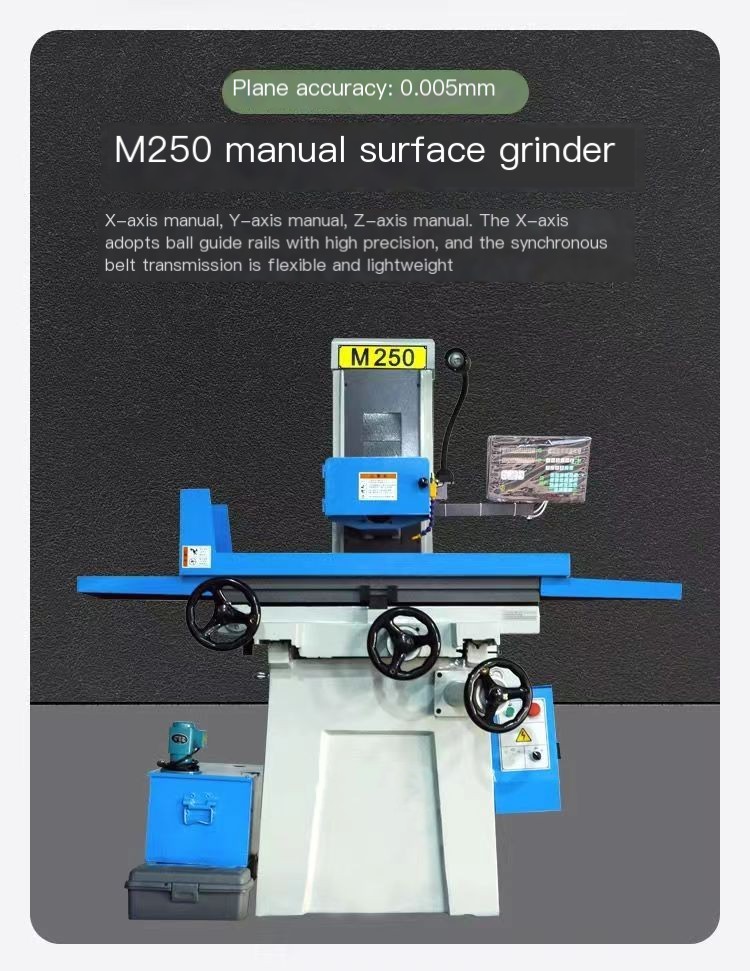

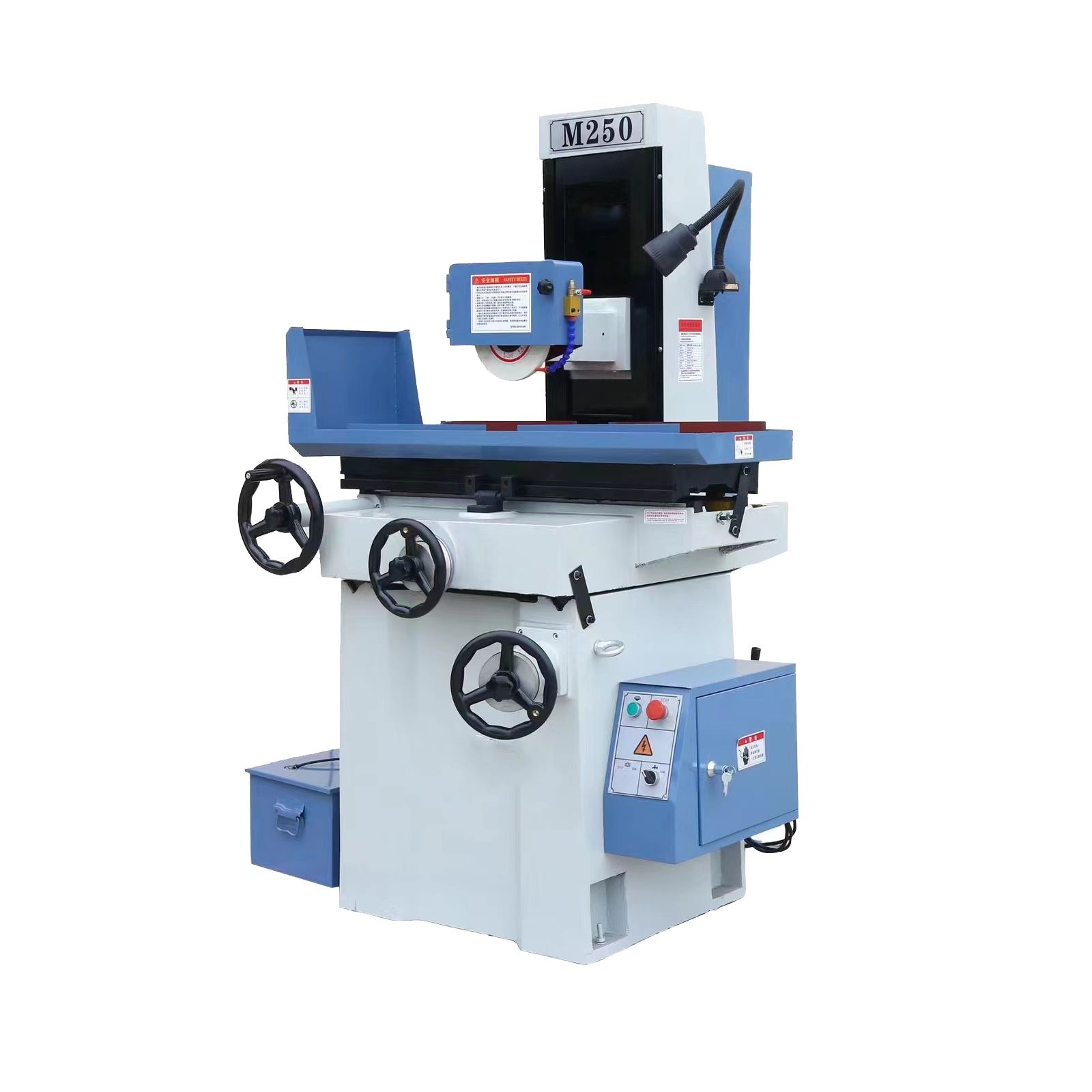

Precision Manual Surface Grinding Machine

Basic Info

Model No.: M250

Brand: GuoSheng

Whether CNC Machine Tool: Cnc

Status: New

Place Of Origin: China

Core Selling Point: Multifunctional

Applicable Industry: Farms, Home Use, Energy &Amp; Mining, Construction Works, Machinery Repair Shops, Building Material Shops, Hotels

Additional Info

Packaging: Wooden case packing

Transportation: Ocean,Land

Place of Origin: CHINA

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Product Description

Guosheng Intelligent Technology Machine Tool Co., Ltd. is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company. The company has its own brand of CNC Lathe Machine, Machining Centers, Sawing Machine, Drilling machine, Grinding Machine, Metal Forming Machine Tools, Special Machine Customization and other full series of machine tool products.

【 Product Description 】

1. The machine has reasonable structure, good rigidity, beautiful appearance and easy operation.

2, the longitudinal guide rail of the table adopts steel ball rolling guide rail, synchronous belt transmission, light and flexible.

【Technical parameter】

Technical specification		unit	M250
Maximum stroke of table (length × width)		mm	550×260
Maximum distance from table to spindle center		mm	470
Table slide			Steel ball V flat rail
Maximum capacity of table		Kg	200
Table size (length × width)		mm	500×250
Table T-slot		mm×n	14×1
Table longitudinal (left and right) speed		m/min	3-20
Hand wheel feed quantity		mm	0.02/ Grid 5.0/ circle
Feed quantity of upper and lower handwheel		mm	0.01/ cell 2.0/ circle
Grinding wheel size (outer diameter × width × inner diameter)		mm	￠200×20×￠31.75
Spindle speed	50Hz	rpm	2850
Spindle motor		Kw	1.5
Cooling pump		Kw	0.4
Overall dimensions of the machine (L × W × H)		mm	1680×1140×1760
Packing box size (L × W × H)		mm	1400×1160×1960
Gross weight, net weight		T	O.75、 0.65

【disposition】

Configuration description:

disposition	Brand manufacturer	remark
Machine tool spindle	Homemade, the company through 5 processes of processing	Lathe roughing, then tempering, lathe finishing, high-frequency tempering, cylindrical grinding machine finishing
Lead screw	self-restrained	After years of technical transformation of skilled workers, the knife cannot be dropped
motor	Nantong Guanshun motor	Jiangsu famous brand
Permanent magnet chuck	Nantong Xinci	Jiangsu famous brand
Bed rail and column rail	All adopt gantry guide grinding and water linear grinding processing, accuracy and durability are improved
Machine tool casting	Nantong, Jiangsu, are standard T250 material

【Standard accessories】

Product name	quantity	Product name	quantity
Surface Grinding Machine	1	Balance stand	1
Toolbox	1	Balance frame mandrel	1
Flange wrench	1	Axis of balance	1
A Phillips screwdriver	1	Grinding wheel corrector	1
Open end wrench 12 x 14	1	Gold fountain pen	1
Open end wrench 17 x 19	1	Grinding wheel and grinding wheel clamp	1
Open end wrench 19 x 22	1	The drain pipe	1
Allen wrench 3	1	Flush the wire tube	1
Allen wrench 4	1	Floor mat	3
Allen wrench 5	1	Foot screw	3
Allen wrench 6	1	cistern	1
Allen wrench 8	1	Permanent magnet chuck 500*250	1
