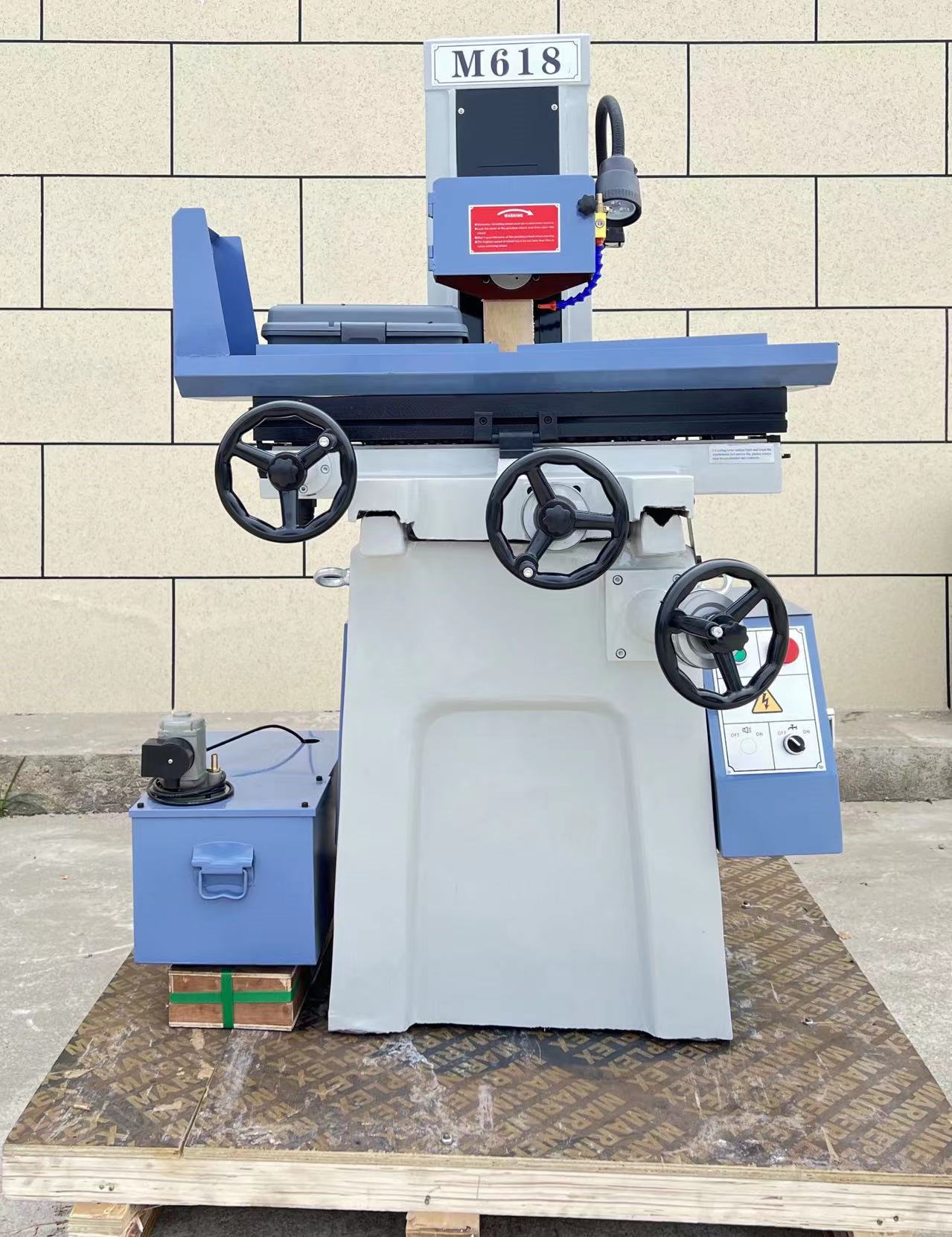

Model No.: M618
Brand: GuoSheng
Whether CNC Machine Tool: Cnc
Status: New
Place Of Origin: China
Core Selling Point: Multifunctional
Applicable Industry: Farms, Home Use, Energy &Amp; Mining, Construction Works, Machinery Repair Shops, Building Material Shops, Hotels
Packaging: Wooden case packing
Transportation: Ocean,Land
Place of Origin: CHINA
Port: SHANGHAI,QINGDAO,LIANYUNGANG
Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd.is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company. The company has its own brand of CNC Lathe Machine, Machining Centers, Sawing Machine, Drilling machine, Grinding Machine, Metal Forming Machine Tools, Special Machine Customization and other full series of machine tool products.
【 Product Description 】
1. The machine has reasonable structure, good rigidity, beautiful appearance and easy operation.
2, the longitudinal guide rail of the table adopts steel ball rolling guide rail, synchronous belt transmission, light and flexible.
【Technical parameter】
| Technical specification | Unit | M618 | |
| Maximum stroke of table (length × width) | mm | 490×180 | |
| Maximum distance from table to spindle center | mm | 335 | |
| Table slide |
| Steel ball V flat rail | |
| Maximum capacity of table | Kg | 200 | |
| Table size (length × width) | mm | 450×150 | |
| Table T-slot | mm×n | 14×1 | |
| Hand wheel feed quantity | mm | 0.02/ grid 4.0/ circle | |
| Feed quantity of upper and lower handwheel | mm | 0.01/ cell 2.0/ circle | |
| Grinding wheel size (outer diameter × width × inner diameter) | mm | ￠180×13×￠31.75 | |
| Spindle speed | 50Hz | rpm | 2850 |
| Spindle motor | Kw | 1.1 | |
| Cooling pump | Kw | 0.4 | |
| Overall dimensions of the machine (L × W × H) | mm | 1550×1150×1590 | |
| Packing box size (L × W × H) | mm | 1000×1150×1760 | |
| Gross weight, net weight | T | O.75、 0.65 | |
【Configuration description】
| disposition | Brand manufacturer | remark |
| Machine tool spindle | Homemade, the company through 5 processes of processing | Lathe roughing, then tempering, lathe finishing, high-frequency tempering, cylindrical grinding machine finishing |
| Lead screw | self-restrained | After years of technical transformation of skilled workers, the knife cannot be dropped |
| motor | Nantong Guanshun motor | Jiangsu famous brand |
| Permanent magnet chuck | Nantong Xinci | Jiangsu famous brand |
| Bed rail and column rail | All adopt gantry guide grinding and water linear grinding processing, accuracy and durability are improved |
|
| Machine tool casting | Nantong, Jiangsu, are standard T250 material |
|
【Standard accessories】
| Product name | quantity | Product name | quantity |
| 1 | Balance stand | 1 | |
| Toolbox | 1 | Balance frame mandrel | 1 |
| Flange wrench | 1 | Axis of balance | 1 |
| A Phillips screwdriver | 1 | Grinding wheel corrector | 1 |
| Open end wrench 12 x 14 | 1 | Gold fountain pen | 1 |
| Open end wrench 17 x 19 | 1 | Grinding wheel and grinding wheel clamp | 1 |
| Open end wrench 19 x 22 | 1 | The drain pipe | 1 |
| Allen wrench 3 | 1 | Flush the wire tube | 1 |
| Allen wrench 4 | 1 | Floor mat | 3 |
| Allen wrench 5 | 1 | Foot screw | 3 |
| Allen wrench 6 | 1 | cistern | 1 |
| Allen wrench 8 | 1 | Permanent magnet sucker 400*150 | 1 |
