Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd.
hydraulic surface grinder,Precision grinding machine,hydraulic surface grinding machine
Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd.
hydraulic surface grinder,Precision grinding machine,hydraulic surface grinding machine

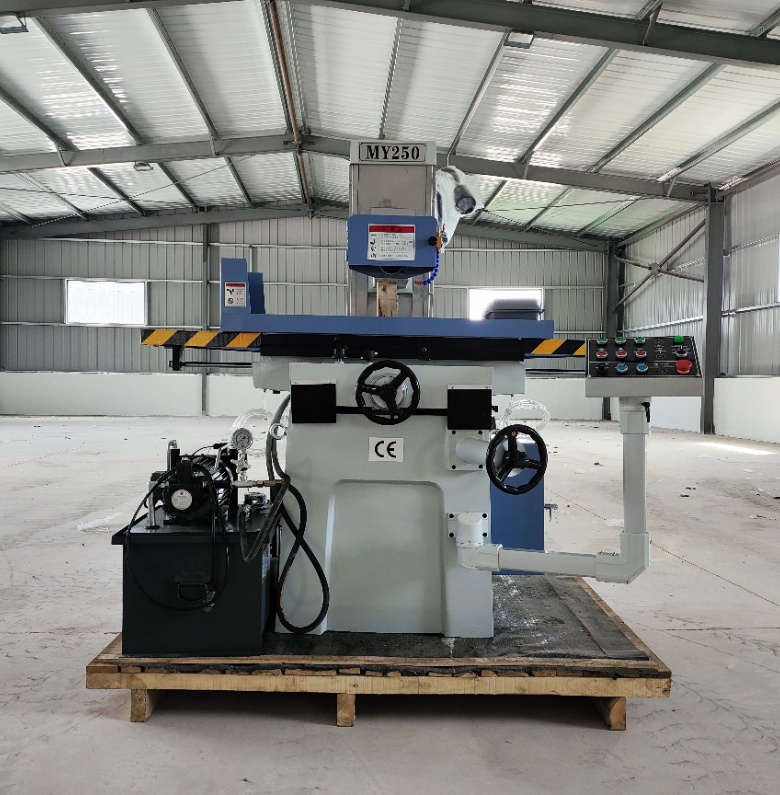

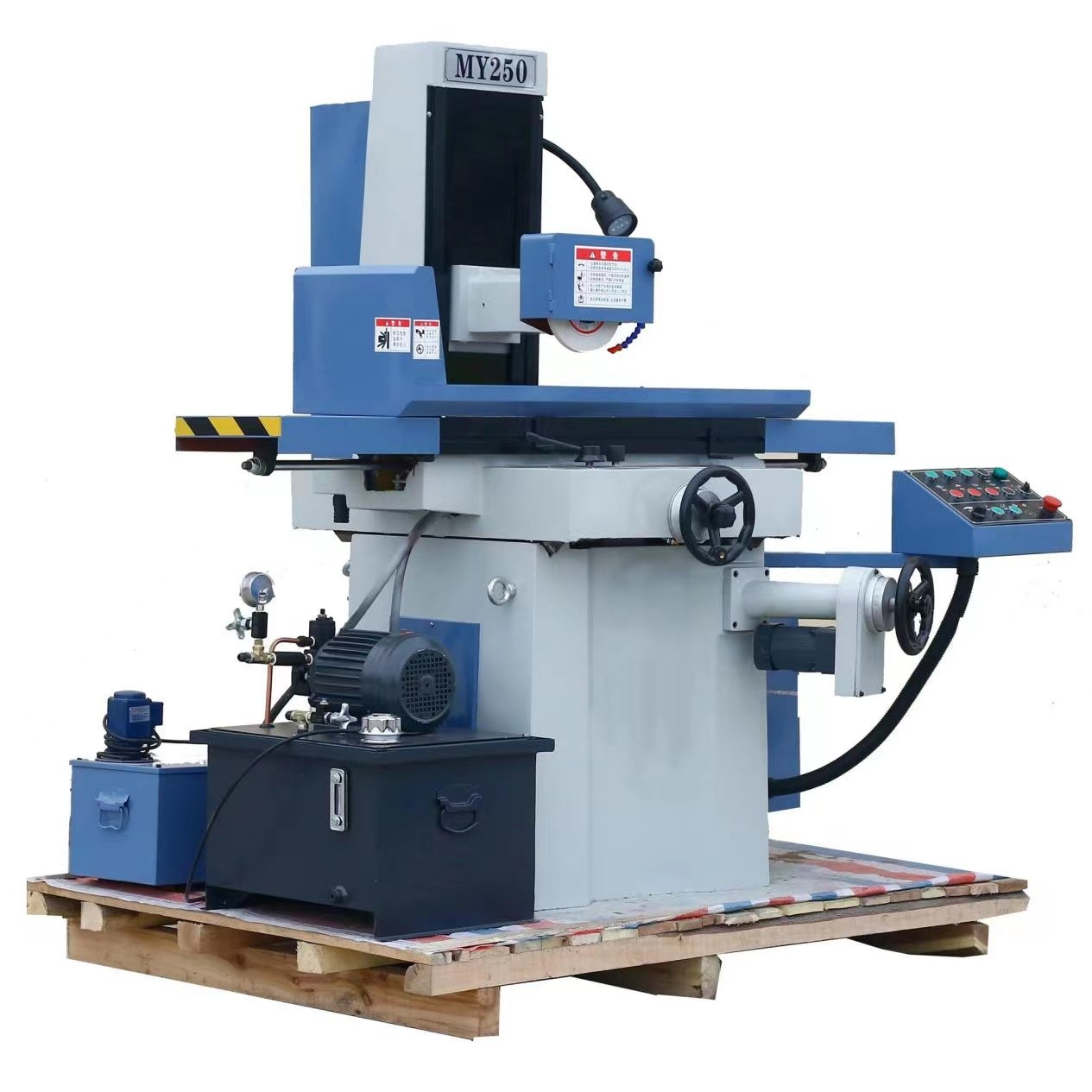

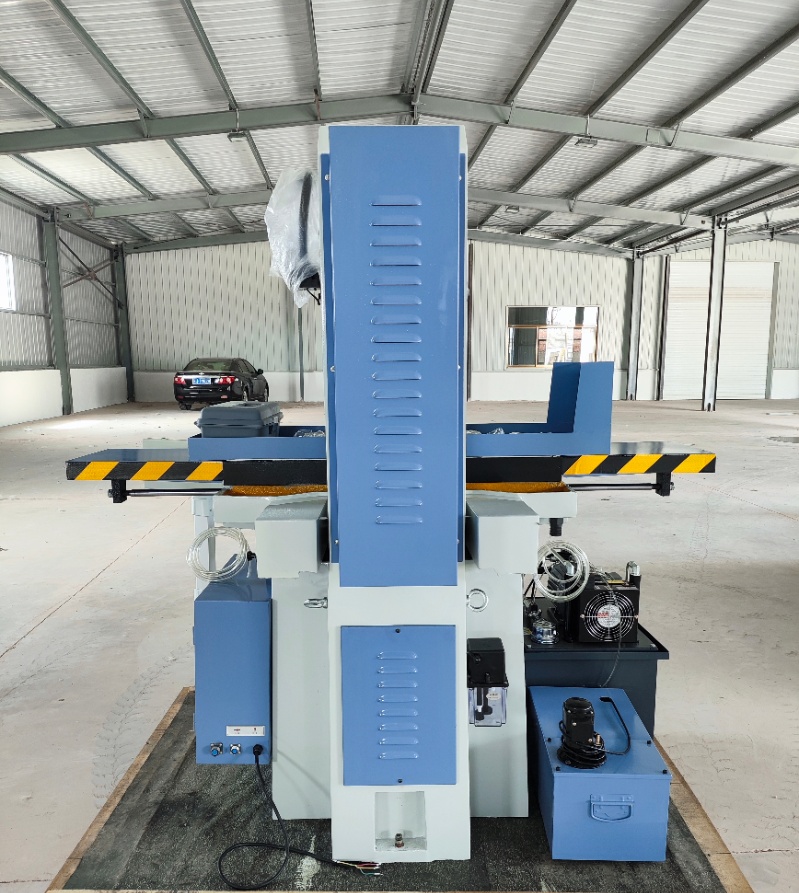

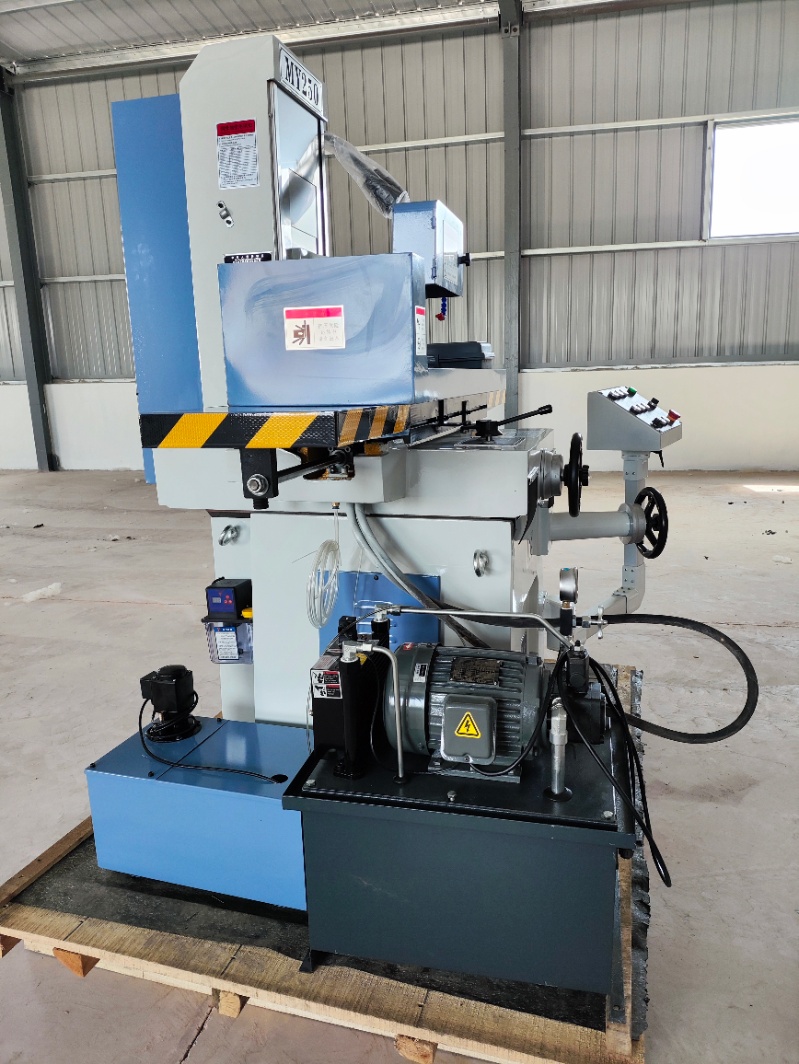

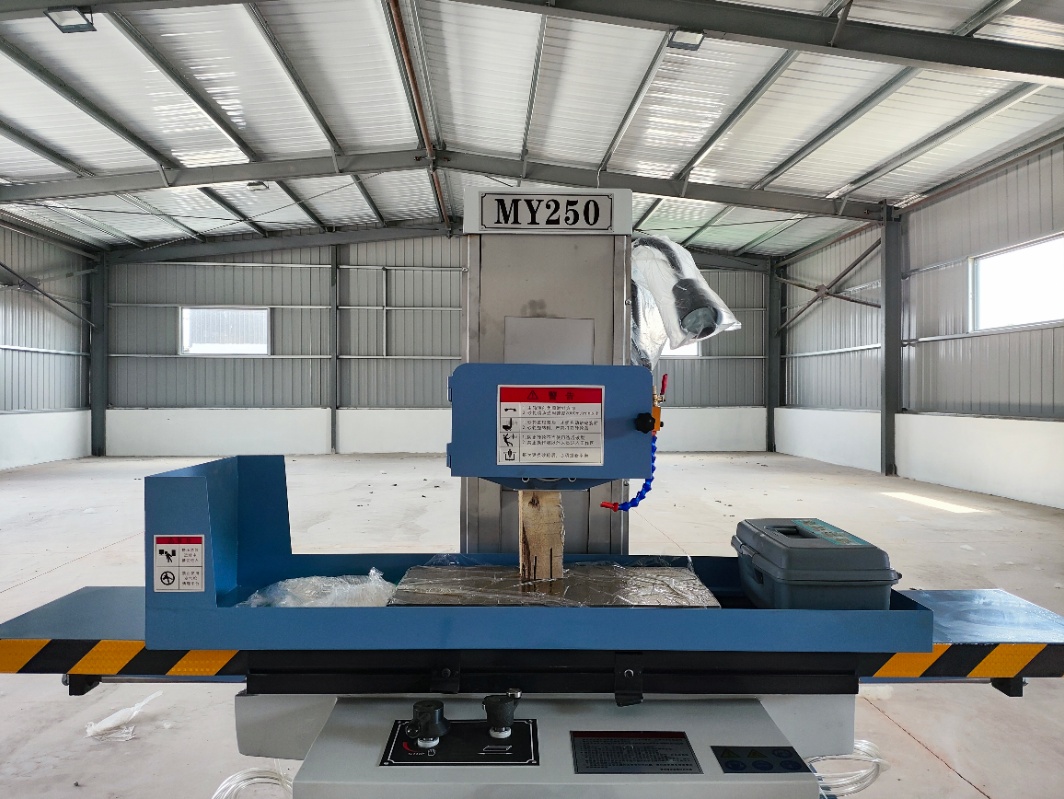

Model No.: MY250
Brand: GuoSheng
Whether CNC Machine Tool: Cnc
Status: New
Place Of Origin: China
Core Selling Point: Multifunctional
Applicable Industry: Farms, Home Use, Energy &Amp; Mining, Construction Works, Machinery Repair Shops, Building Material Shops, Hotels
Packaging: Wooden case packing
Transportation: Ocean,Land
Place of Origin: CHINA
Port: SHANGHAI,QINGDAO,LIANYUNGANG
【Times New Roman】
| Type number | MY250 | |||
| workbench
| Table size (length × width) | mm | 500×250 | |
|
| Maximum stroke of table (length × width) | mm | 560×260 | |
|
| Table T-slot (slot number x slot width) | mm | 1×14 | |
| Grinding head
| Distance from center line of sand wheel shaft to work table | mm | 450 | |
|
| Grinding wheel size (outer diameter × width × inner diameter) | mm | 200*20*31.75 | |
| 200 | Grinding wheel speed | 50HZ | r/min | 2850 |
|
|
| 60HZ |
| 3360 |
| Feed quantity | Table longitudinal (left and right) speed (non-polar) | m/min | 3-20 | |
|
| Lateral (front and rear) feed of table
| continuous | mm/min | 600 |
|
|
| intermittent | mm/time | 0-5 |
|
|
| Hand wheel every turn | mm | 5.0 |
|
|
| Hand wheel per cell | mm | 0.02 |
|
| Vertical (up and down) hand wheel feed | Hand wheel every turn | mm | 2.0 |
|
|
| Hand wheel per cell | mm | 0.01 |
|
| Up and down fast speed (approximate) | mm/min | － | |
| Motor power
| Spindle motor | kw | 1.5 | |
|
| Cooling machine | W | 40 | |
|
| Elevating motor | W | － | |

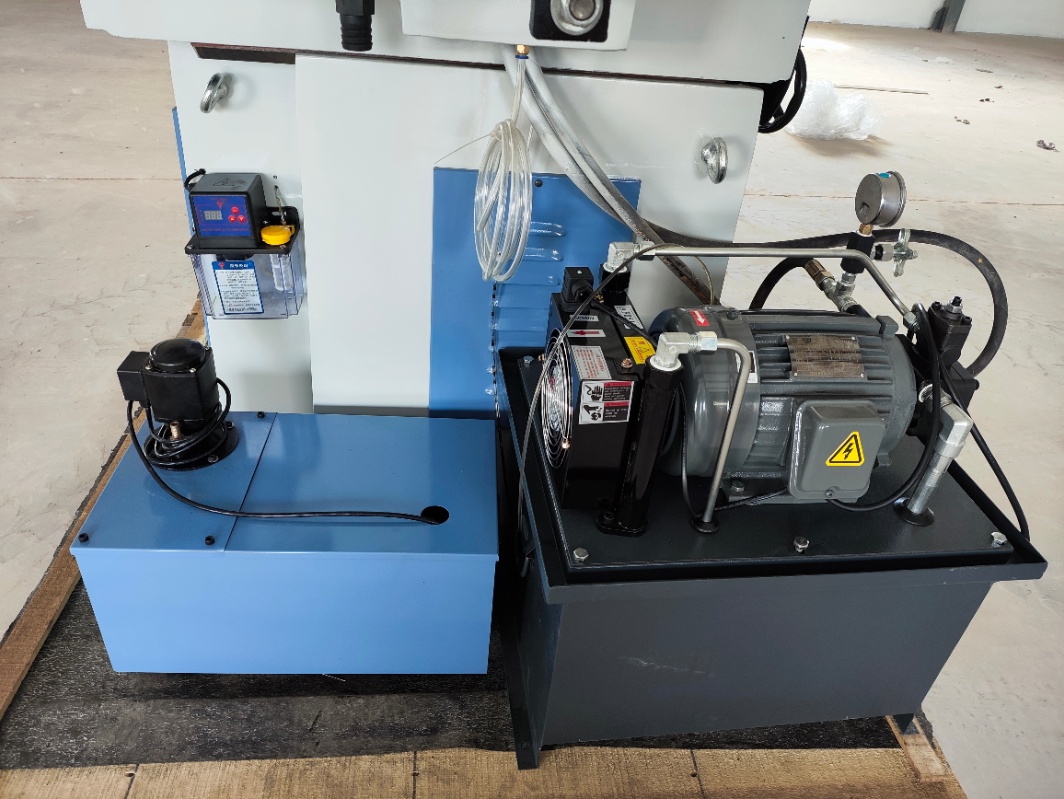

| Oil pressure system
| Hydraulic motor | kw | 1.5 | |
|
| Working pressure | Mpa | 3 | |
|
| Tank capacity | L | 80 | |
|
| Maximum discharge | L/min | 18 | |
| Working accuracy | Parallelism of the machined surface to the base surface | mm | 300:0.005 | |
|
| Surface roughness | μm | Ra0.32 | |
| Net/gross weight | kg | 950/1050 | ||
| Standard sucker (permanent magnet sucker) | mm | 250×500 | ||
| Overall dimensions (L × W × H) | mm | 1680x1220x1720 | ||
| Packing box size (L × W × H) | mm | 1630x1290x1940 | ||
【Configuration description】
| disposition | Brand manufacturer | remark |
| Machine tool spindle | Homemade, the company through 5 processes of processing | Lathe roughing, then tempering, lathe finishing, high-frequency tempering, cylindrical grinding machine finishing |
| Lead screw | self-restrained | After years of technical transformation of skilled workers, the knife cannot be dropped |
| motor | Nantong Guanshun motor | Jiangsu famous brand |
| Permanent magnet chuck | Nantong Xinci | Jiangsu famous brand |
| Bed rail and column rail | All adopt gantry guide grinding and water linear grinding processing, accuracy and durability are improved |
|
| Machine tool casting | Nantong, Jiangsu, are standard T250 material |
|
【Standard accessories】
| Product name | quantity | Product name | quantity |
| 1 | Balance stand | 1 | |
| Toolbox | 1 | Balance frame mandrel | 1 |
| Flange wrench | 1 | Axis of balance | 1 |
| A Phillips screwdriver | 1 | Grinding wheel corrector | 1 |
| Open end wrench 12 x 14 | 1 | Gold fountain pen | 1 |
| Open end wrench 17 x 19 | 1 | Grinding wheel and grinding wheel clamp | 1 |
| Open end wrench 19 x 22 | 1 | The drain pipe | 1 |
| Allen wrench 3 | 1 | Flush the wire tube | 1 |
| Allen wrench 4 | 1 | Floor mat | 3 |
| Allen wrench 5 | 1 | Foot screw | 3 |
| Allen wrench 6 | 1 | cistern | 1 |
| Allen wrench 8 | 1 | Permanent magnet chuck 500*250 | 1 |
|
|
|
|
|
Product Categories : Grinding Machine > Surface Grinding Machine
