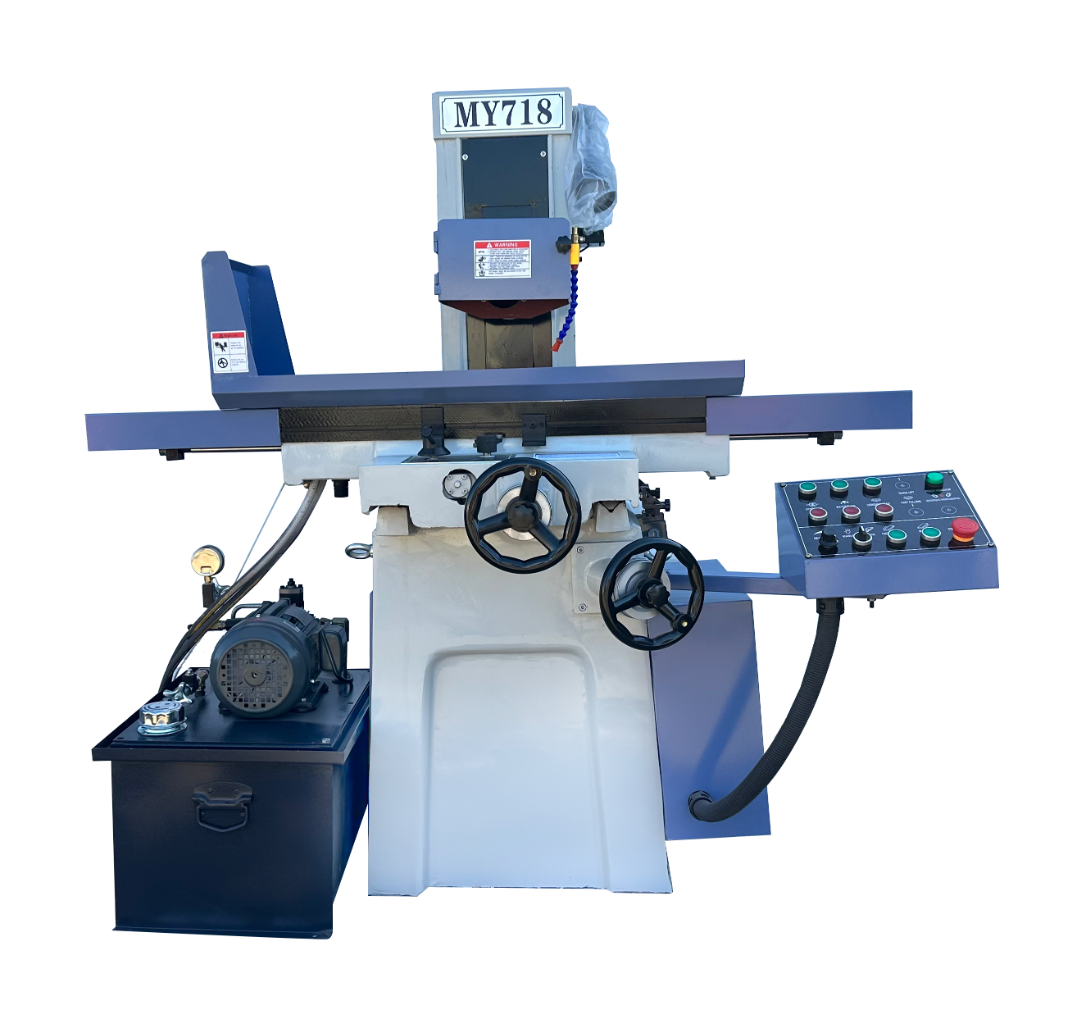

Horizontal Surface Grinder Machine

Basic Info

Model No.: MY718

Brand: GuoSheng

Whether CNC Machine Tool: Cnc

Status: New

Place Of Origin: China

Core Selling Point: Multifunctional

Applicable Industry: Farms, Home Use, Energy &Amp; Mining, Construction Works, Machinery Repair Shops, Building Material Shops, Hotels

Additional Info

Packaging: Wooden case packing

Transportation: Ocean,Land

Place of Origin: CHINA

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Product Description

Features:

1, MY718: left and right hydraulic, front and back automatic, up and down manual

Main uses of the equipment:

The Grinding Machine is mainly used to grind steel, cast iron and non-ferrous metals and other materials around the grinding wheel.

According to the material and shape of the workpiece, different clamping and positioning methods can be used. General plane, can be used electromagnetic sucker or directly fastened to the work table for grinding; Flat surface, right Angle surface, arbitrary Angle, cylindrical end face and some other special shapes, can be grinding on the fixture or multi-functional strong electromagnetic chuck.

Structure of the equipment:

(1) The overall layout of the equipment

one Horizontal shaft rectangular table surface grinding machine

2. The grinding wheel of the grinding wheel holder is cooled by an independent cooling system with a coolant nozzle on each grinding wheel and an independent cooling water tank at one end of the device.

3. At one end of the grinder bed, there is an independent lubrication control tank. The lubrication system continuously lubricates the guide rail moving on the table.

(2) The main mechanical structure characteristics of the grinder

Note: 1. Grey cast iron with good strength, wear resistance and heat resistance and good vibration damping performance is used in the main structure. The interior is reasonably wired to enhance the rigidity. X axis (table) with hydraulic drive for reciprocating movement; Y-axis (front and rear direction) adopts the support plate and the ball screw for reciprocating movement; The Z-axis (grinding head) drives the precision C3 ball screw through the wheel for reciprocating movement to ensure the accuracy of the feed;

(3) guide way form

Note: Using a "V" and a "flat" iron-plastic guide rail;

(4) Grinding wheel frame structure

Note: the grinding wheel frame adopts double-layer fabric to ensure its rigidity; The downward movement of the grinding head adopts skateboard structure, which can avoid inaccurate feed due to long working life;

(5) The electrical system of the whole machine is controlled by multiple electrical groups. And the following points:

1 >, safety protection (mechanical interlock) refers to the interlock between the upper and lower feed and the grinding wheel rotation, only when the grinding wheel rotation can feed, can effectively prevent unnecessary losses caused by human operation;

2 >,( 68495834, 64647902,circuit) overload means that the circuit exceeds the full load value without fault;

3 > Emergency stop refers to the operation that needs to be stopped in a certain emergency situation;

4 >, the machine completed in line with GB5226.1-2002/IEC60204-1:2000 mechanical safety mechanical electrical equipment.

Model Description	Unit	MY718
Max. workpiece to be Ground(L×W×H)	mm	490×190×220
Max.Grinding Length	mm	500
Max.Grinding width	mm	200
Distance from table surface to spindle center	mm	360
Slide way		One flat rail one V rail
Maximum work load	kg	200
Table size(L×W)	mm	460×180
Number of T-slot	mm×n	14×1
Speed of working table	m/min	7-23
Cross feed on hand wheel	mm	0.02/Graduation 4/revolution
Vertical feed on hand wheel	mm	0.01/Graduation 2/revolution
Wheel size(dia×width×bore)	mm	Φ180×13×Φ31.75
Spindle speeds	rpm	2850
The total power of electric motor	kw	2.7
Spindle motor	kw	1.1
Coolant pump	kw	0.04
Cross feed motor of table	kw	0.06
Hydraulic motor	kw	1.5
The machined surface of the base of parallelism	mm	300：0.005
Surface roughness	μm	Ra0.43
Minimum of numerical	L	60
Packing size(L×W×H)	mm	168011501700
Gross、Net	T	0.85、0.75

attachments：

The name of a product or commodity	quantity	The name of a product or commodity	quantity
Surface Grinding Machine	1	Balancing rod	1
Toolbox	1	Grinding wheel	1
Square screwdriver	1	Grinding wheel corrector	1
Cross screwdriver	1	Balance stand	1
Open end wrench 12 x 14	1	Diamond pen	1
Open end wrench 17*19	1	Foot screw	3
Open end wrench 22 x 24	1	Footing tray	3
Allen wrench 3	1	The drain pipe	1
Allen wrench 4	1	Flush the wire tube	1
Allen wrench 5	1	Permanent magnet sucker 400*150	1
Allen wrench 6	1
Allen wrench 8	1
Allen wrench 10	1
Allen wrench 12	1

Product Categories : Grinding Machine > Surface Grinding Machine
