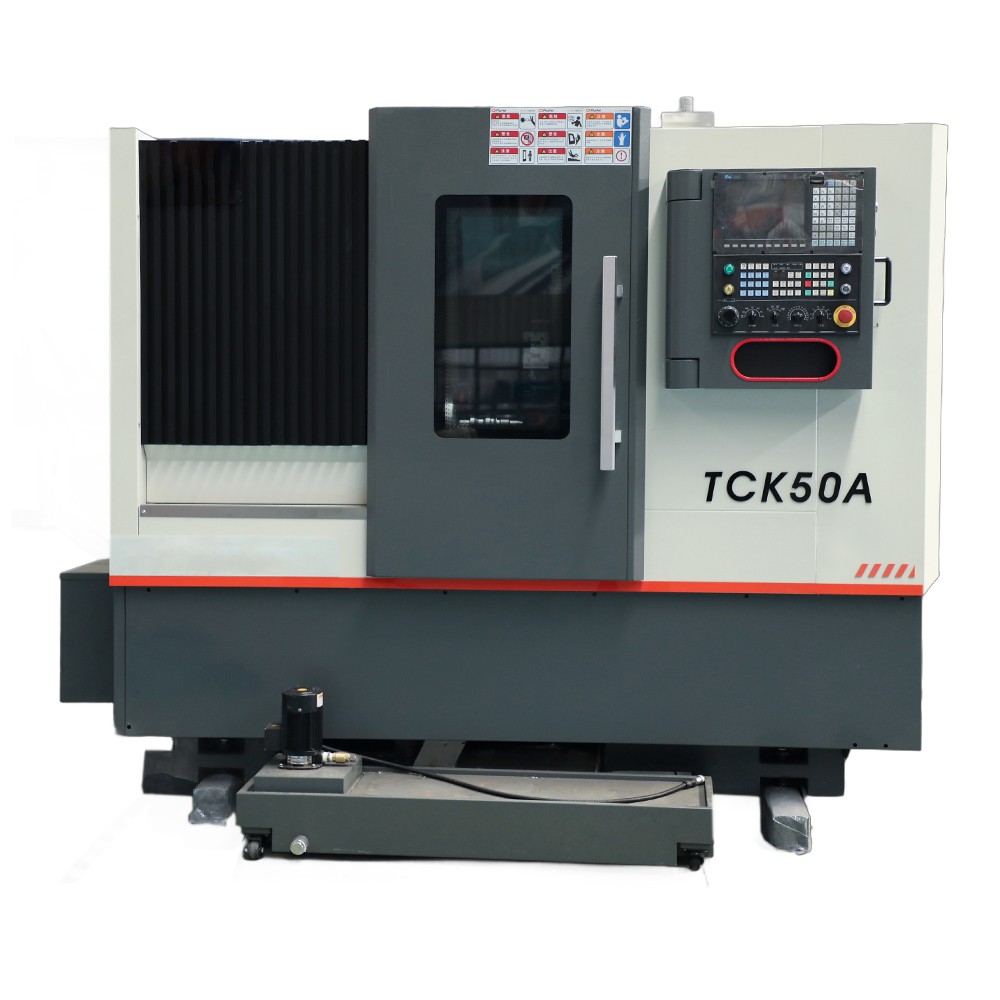

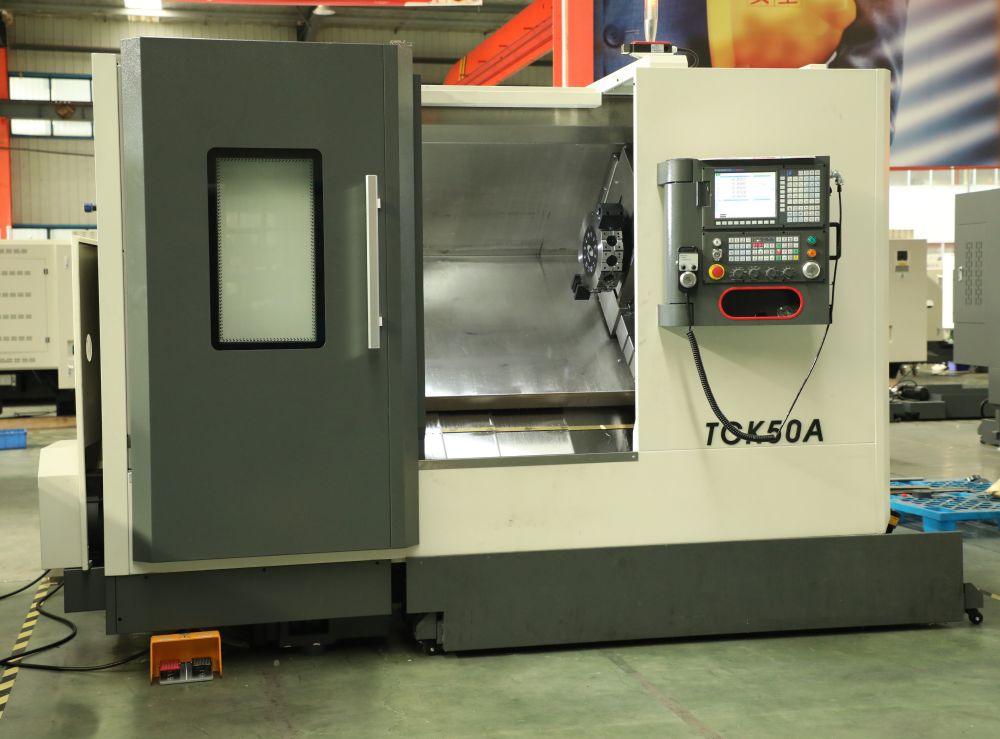

High Efficiency CNC Horizontal Lathe for Precision Machining

Basic Info

Model No.: TCK50

Brand: GuoSheng

Additional Info

Packaging: Wooden case packing

Transportation: Ocean,Land

Place of Origin: CHINA

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Product Description

Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd. is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company. The company has its own brand of CNC lathes, machining centers, sawing machines, drilling machines, grinding machines, metal forming machine tools, special machine customization and other full series of machine tool products, serving the machining industry for many years, has a strong after-sales service team, not only for their own product after-sales service, but also undertake various machine tool maintenance, service in place in time.

Machine description:

This series of machine tools is the company's main export mature products, the whole machine structure is compact, beautiful appearance, spindle large torque, high rigidity, stable and reliable performance, with excellent accuracy retention.
Adopt 30° or 45°) overall inclined bed structure, equipped with high-precision pre-load Taiwan linear roller guide, the machine position accuracy is high, the chip removal is smooth, suitable for high-speed and high-precision processing.
High precision spindle unit and spindle housing are precisely assembled.

Spindle description: The spindle with high precision spindle bearing group and precision assembly and dynamic balance test ensures high precision, low noise and strong rigidity of the spindle.

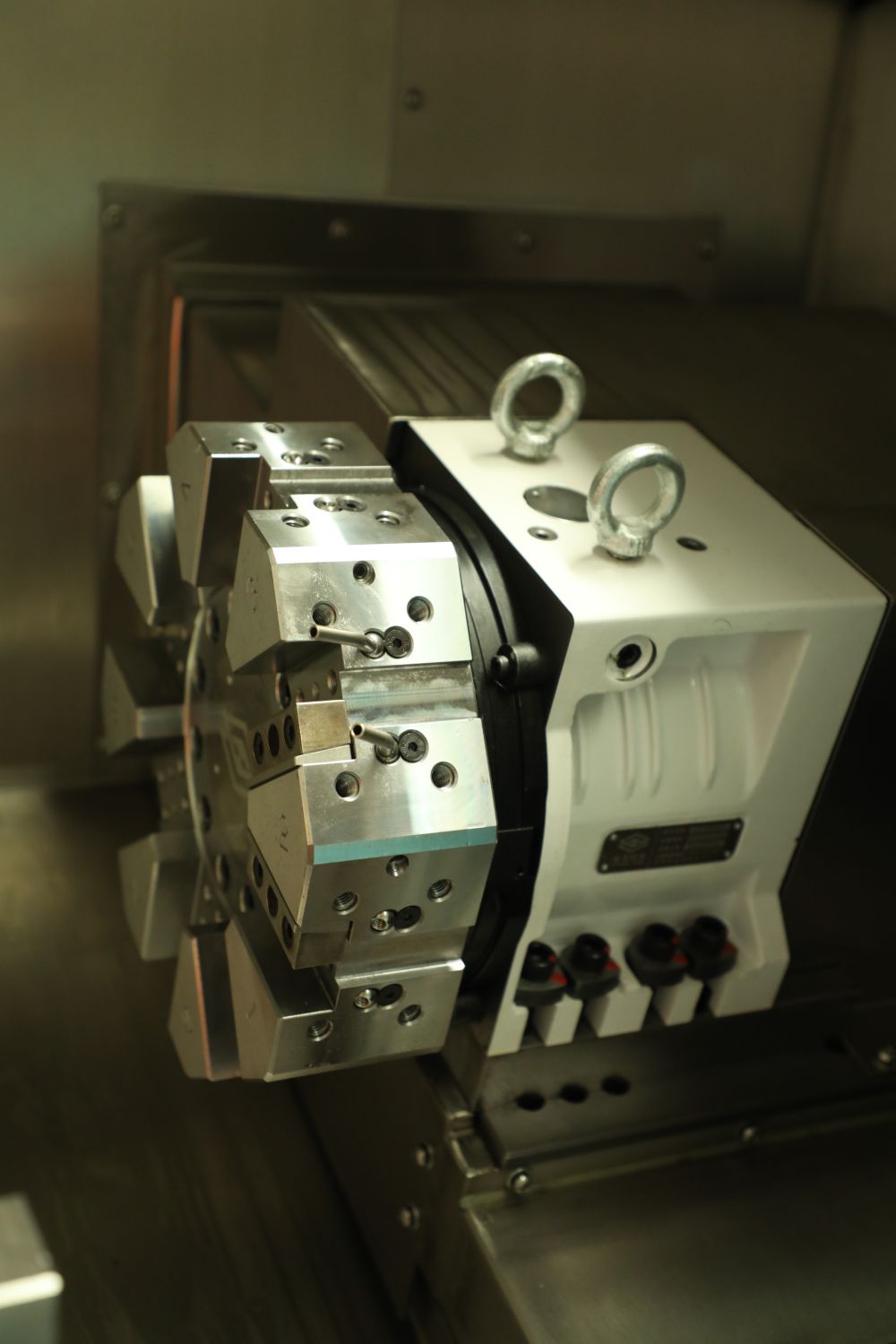

Tool tower description: Choose the tool tower mode, the tool change speed is fast, the positioning accuracy is high.

Commonly used for hydraulic tool tower and servo tool tower, can also choose power tool tower.

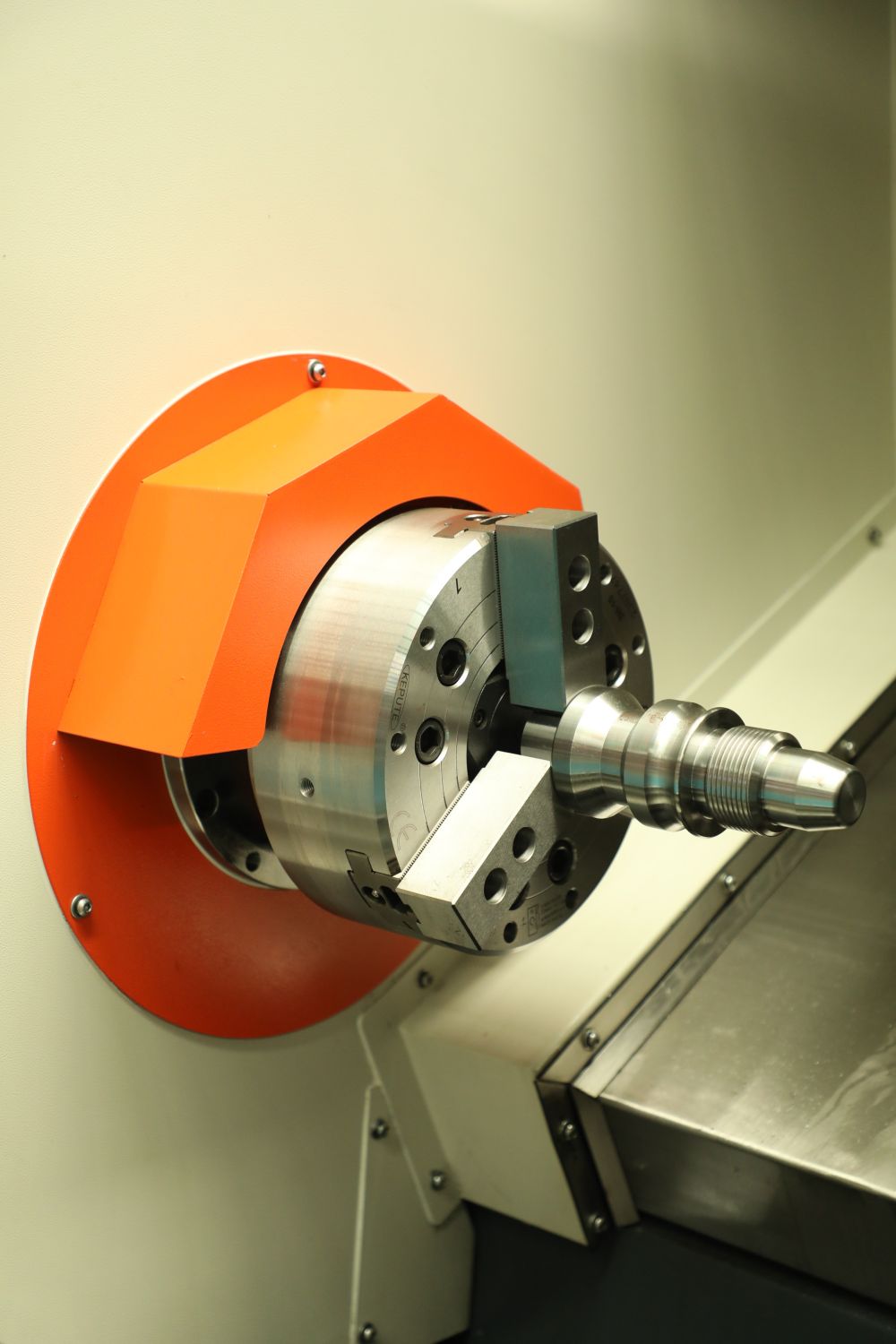

Chuck description: Wedge through hole chuck, fast clamping and loosening the workpiece under hydraulic action, fast clamping speed, high precision.

Transmission description: The screw and nut are processed, ground, assembled and quality control in the constant temperature workshop, which can ensure its high-precision stability. The friction coefficient of the line rail is small, the moving speed is fast, and the precision is high.

Tail seat description: The hydraulic tail seat is processed by manual (or hydraulic) adjustment, manual (or hydraulic) locking, and hydraulic piston jacking the workpiece.

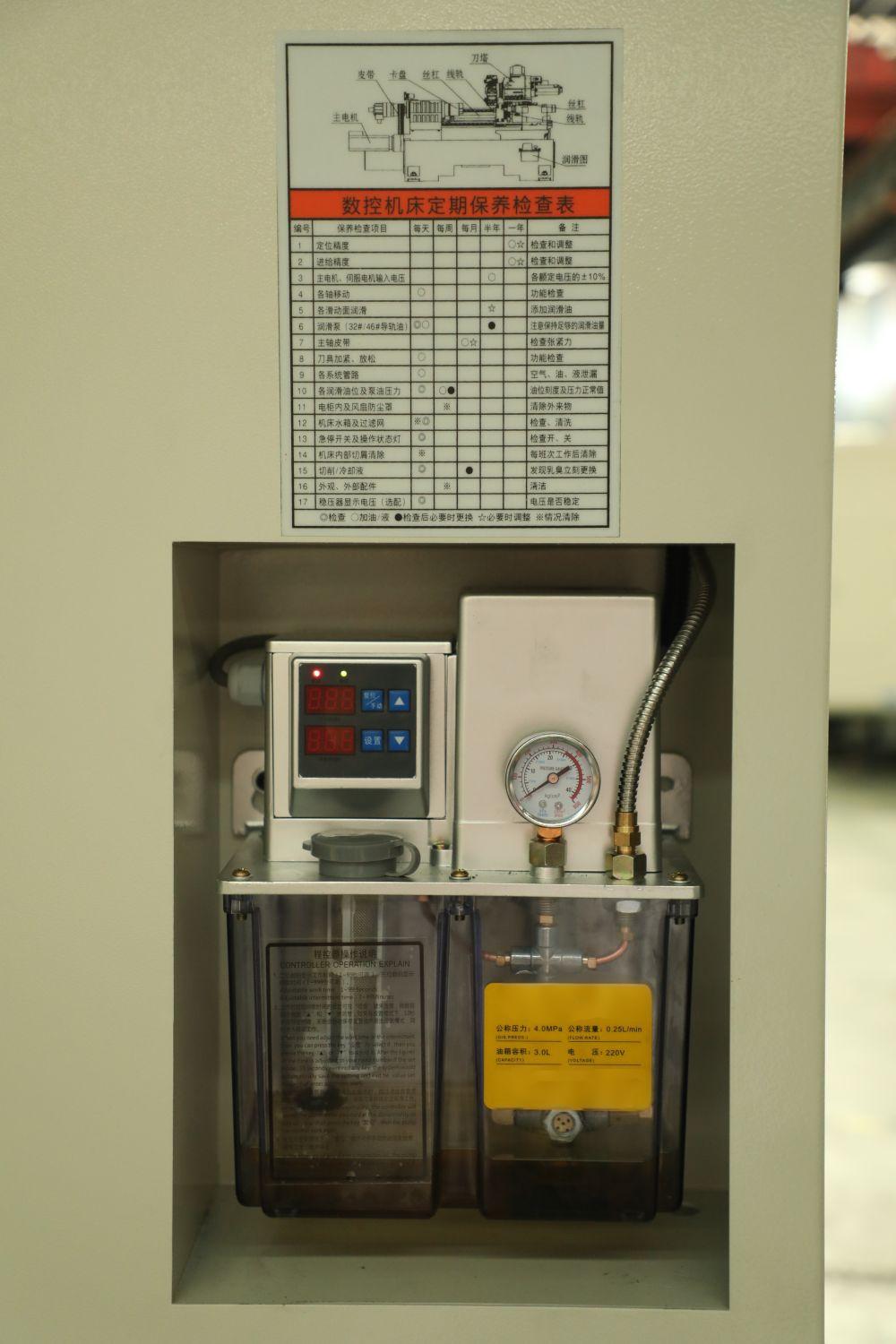

Machine tool lubrication description: RBCLB-3ZK type positive displacement lubrication pump, automatic lubrication, mainly the bed guide rail and the dovetail surface, the lubrication surface between the ball screw and the nut continuous oil supply.

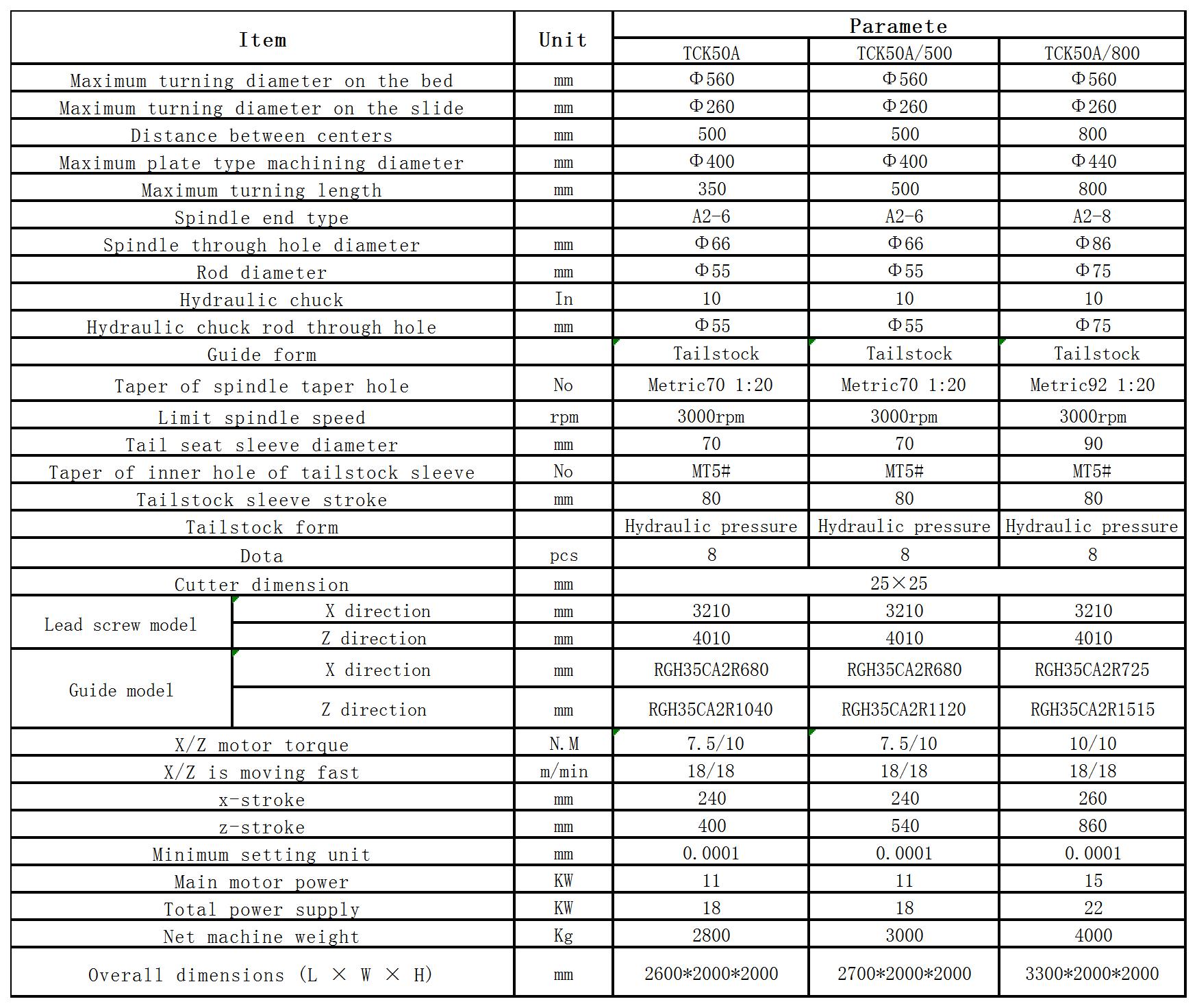

2、Main technical parameters：

Attention:

When installing a chuck or fixture, please pay attention to the limit speed of the selected chuck or fixture.
CNC machine tools on the power supply requirements are strict, if the user's power grid fluctuations of more than ±10%, must increase the voltage regulator, otherwise CNC machine tools will not work normally, and even unpredictable results.
The machine tool does not update the configuration regularly, the specific parameters should be subject to the latest configuration, the specific details will be detailed in the negotiation.

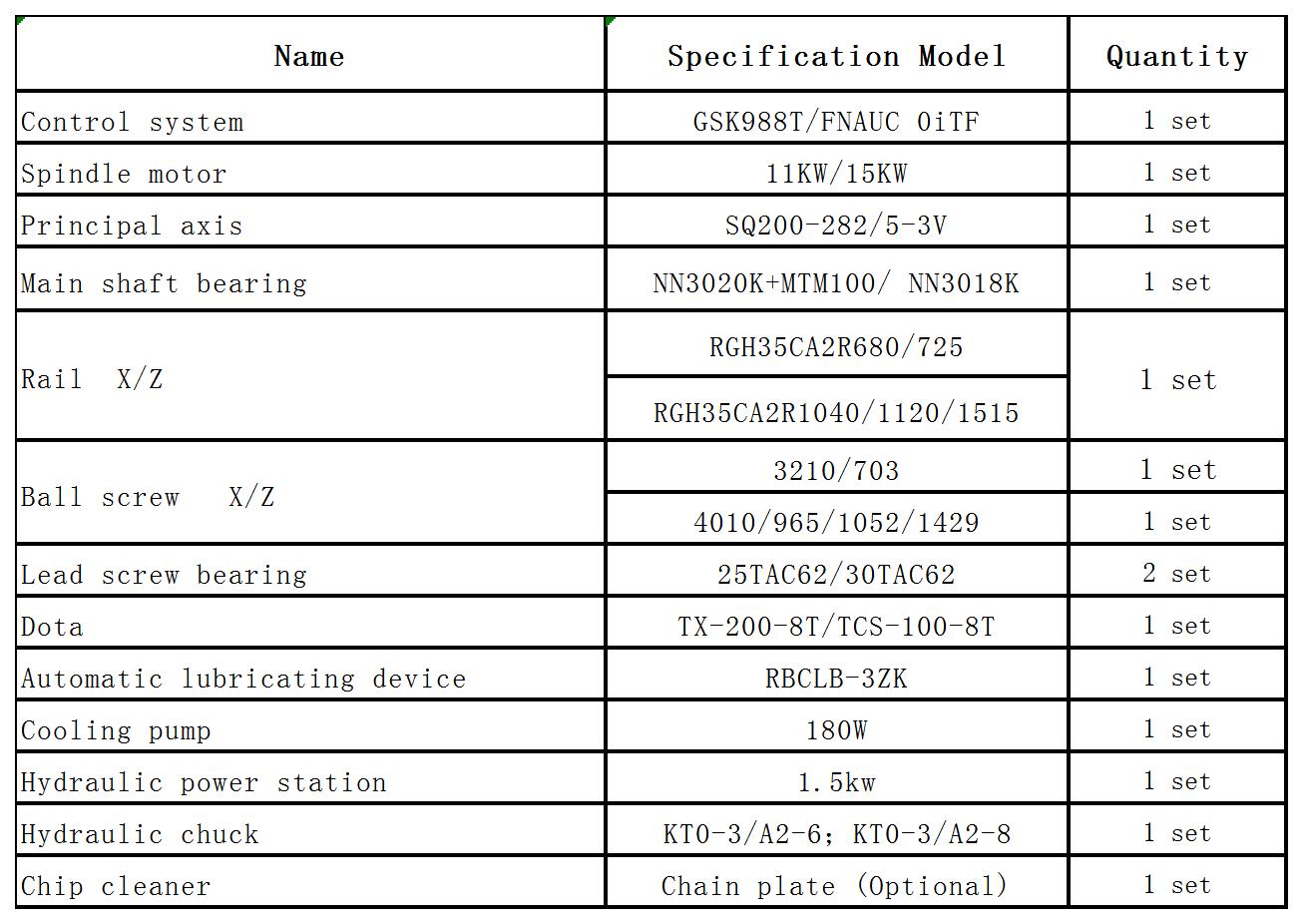

3、Machine configuration list：
