1、Machine tool structure characteristics and functional requirements:
Machine description: This machine tool is a high speed, high precision, high reliability of the inclined bed machine tool. The main components such as bed base, bed body and headboard box are cast with high-strength materials to ensure the long-term stability of the machine tool.
The machine adopts 45° integral inclined bed structure, equipped with high-precision pre-load Taiwan linear rolling guide rail, the servo motor is directly connected with the lead screw through the high-torque and low-inertia elastic coupling, and the lead screw support is pre-stretched structure, which can eliminate the transmission back backlash and pre-compensate the influence of thermal deformation on the accuracy of the machine tool during long-term operation to ensure positioning accuracy and repeated positioning accuracy. The position accuracy of the machine tool is high, the chip removal is smooth, and it is suitable for high-speed and high precision processing.
High speed, high precision and high rigidity shell spindle unit and servo spindle motor can achieve higher spindle speed. The spindle unit is assembled in a constant temperature room. After assembly, it is closed at a constant temperature for 72 hours. After running, it is tested for 72 hours to ensure reliable high-speed and high precision performance.
Select the tool row mode, the tool change speed is fast, the positioning accuracy is high.
The machine tool protection adopts full protection design, strong human nature, unique appearance, reliable waterproof and anti-chip, easy maintenance.
Spindle description: Using high-precision spindle bearing group and precision assembly and dynamic balance test to ensure the spindle high precision, low noise, strong rigidity.
Tool tower description: compact structure, fast tool change speed, cutter head can be selected nearby; Adopts hydraulic or servo drive knife to rotate, divide and loosen locking, smooth action, large torque, suitable for heavy cutting; Repeatable positioning accuracy up to 0.003mm.
Chuck description: wedge-shaped through hole chuck, in line with daily and Taiwan standards; All sliding surfaces are hardened and finely ground; High rigid structure and high clamping accuracy.
Transmission description: The screw and nut are processed, ground, assembled and quality control in the constant temperature workshop, which can ensure its high-precision stability.
Linear guide adopts 4 row roller type 45° contact Angle and high rigid section design, which has the characteristics of strong load bearing capacity, small friction force, good rigidity, low noise and good lubrication effect.

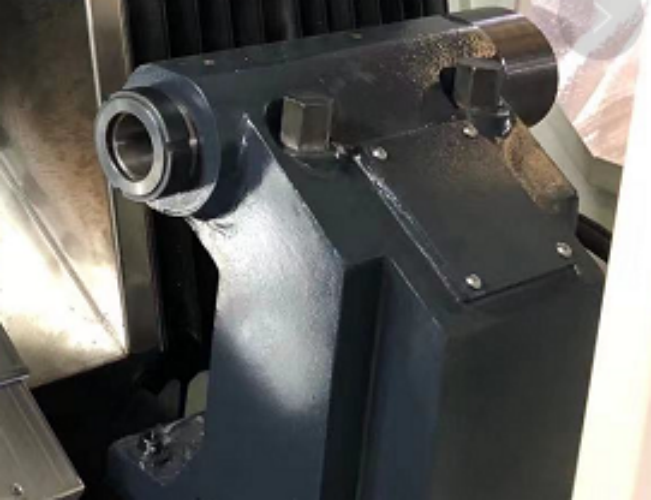

Tail seat description: manual tail seat is manually moved to a certain position, loosen the locking handle, rotate the handwheel to move the sleeve, tighten the workpiece, and then lock the sleeve, and then turn. The hydraulic tailstock is processed by means of hydraulic adjustment, locking and hydraulic piston jacking the workpiece.

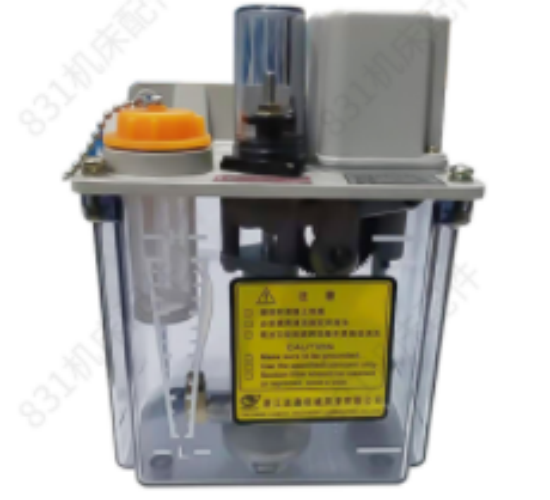

Machine tool lubrication description: each lubrication point adopts a forced automatic lubrication device for fixed point quantitative lubrication of lead screw and guide rail, when there is abnormal state or insufficient oil, automatic warning signal, stable and reliable work.
2,、The main technical parameters:
Attention:
- When installing a chuck or fixture, please pay attention to the limit speed of the selected chuck or fixture.
- CNC machine tools on the power supply requirements are strict, if the user's power grid fluctuations of more than ±10%, must increase the voltage regulator, otherwise CNC machine tools will not work normally, and even unpredictable results.
- The machine tool does not update the configuration regularly, the specific parameters should be subject to the latest configuration, the specific details will be detailed in the negotiation.
3、Machine tool configuration list: 4、Machine tool accuracy standard
