1, This series of machine tools is the export of mature products, the whole machine structure is compact, beautiful appearance, spindle large torque, high rigidity, stable and reliable performance, with excellent accuracy retention.
2, Headboard optimization design, suitable for disk, shaft parts of the turning processing, can be linear, circular arc, male thread, multi-thread processing, can be used for turning complex shape and high precision disk, shaft parts processing.
3,Machine tool guide rail and slide saddle guide rail are made of special materials, high frequency quenching, super hard and wear-resistant, durable, good processing accuracy.
Spindle specification:
Adopt high-quality steel die forging - normalizing - processing - tempering - semi-finishing - high-frequency - precision machining - finished products. High precision spindle bearing group and precision assembly and dynamic balance test to ensure high spindle accuracy, low noise, strong rigidity.
Tool rest instructions：
Using worm gear drive, three-tooth disk meshing positioning, screw locking principle, stable rotation, no lifting, to avoid cutting fluid infiltration inside the tool holder during rotation.
Chuck specification：
K11 series three-jaw self-centering chuck, short cylindrical connection mode, integral jaw (one pair of positive and negative), K11A/C/D type jaw for separation jaw, can be adjusted to positive jaw and anti-jaw use.
Transmission description: The screw and nut are processed, ground, assembled and quality control in the constant temperature workshop, which can ensure its high-precision stability.

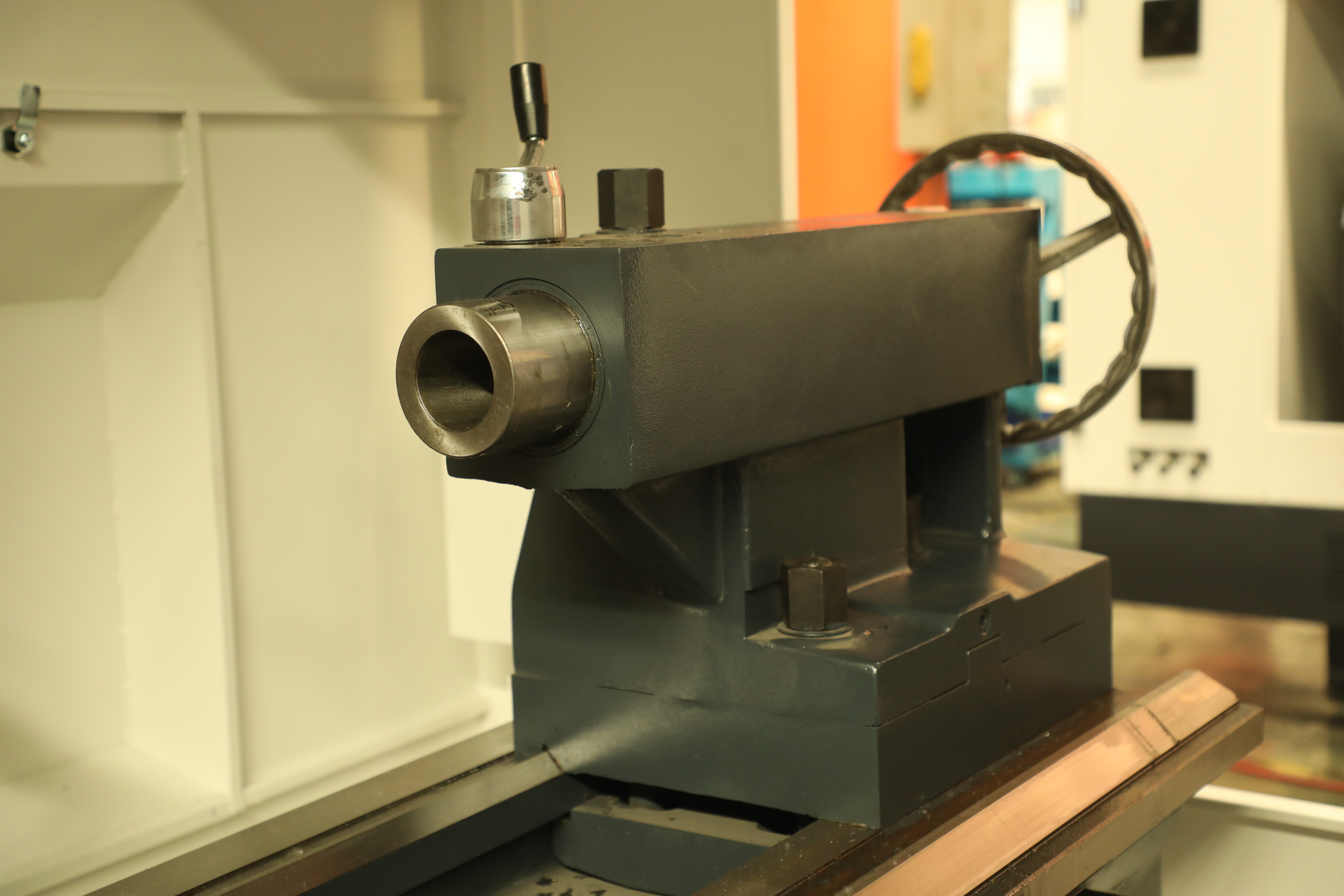

Tail seat description:
At the other end of the spindle, after moving to a certain position,Loosen the locking handle, rotate the handwheel to move the sleeve, tighten the workpiece,Then the sleeve is locked and can be turned.
Machine lubrication instructions:
RBCLB-3ZK positive displacement lubrication pump, automatic lubrication, mainly the bed guide rail and the dovetail surface of the drag plate, the lubrication surface between the ball screw and the nut continuous oil supply.

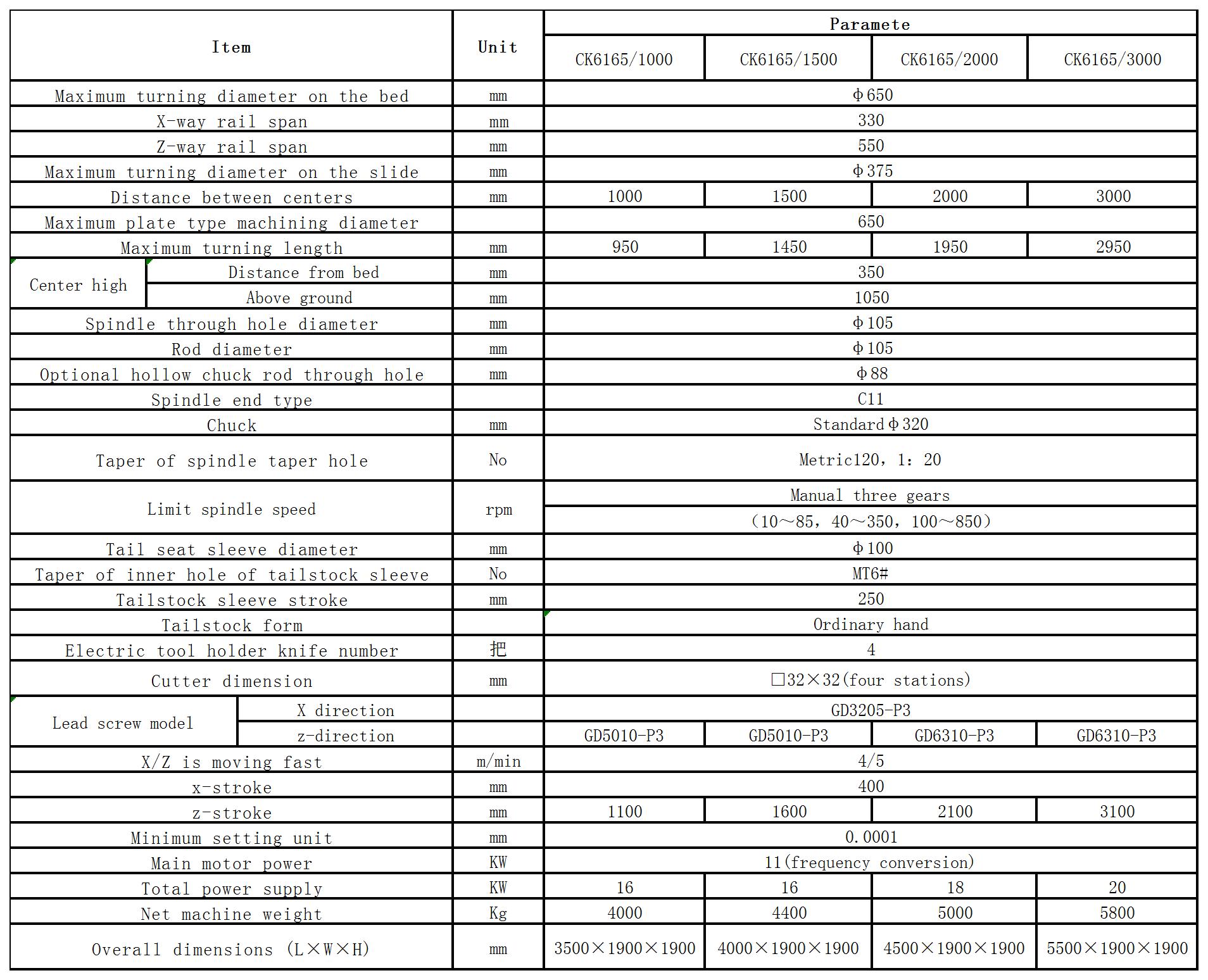

Main technical parameters：
Note:
1. When installing a chuck or fixture, please pay attention to the limit speed of the selected chuck or fixture.
2, CNC machine tools on the power supply requirements are strict, if the user's power grid fluctuations of more than ±10%, must increase the voltage regulator, otherwise CNC machine tools will not work normally, and even unpredictable results.
3, the machine tool does not update the configuration regularly, the specific parameters should be subject to the latest configuration, the specific details will be detailed in the negotiation.

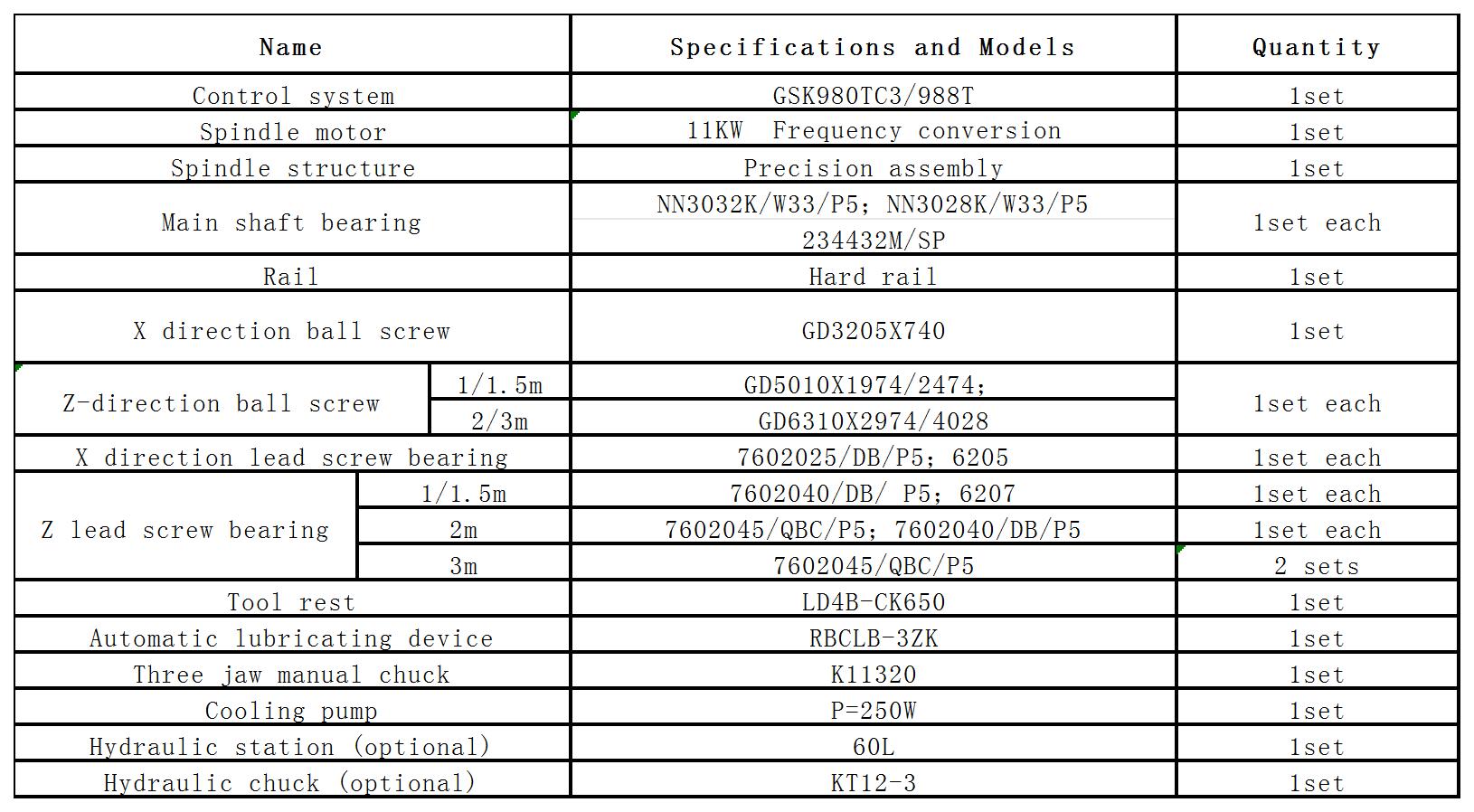

Machine configuration list:

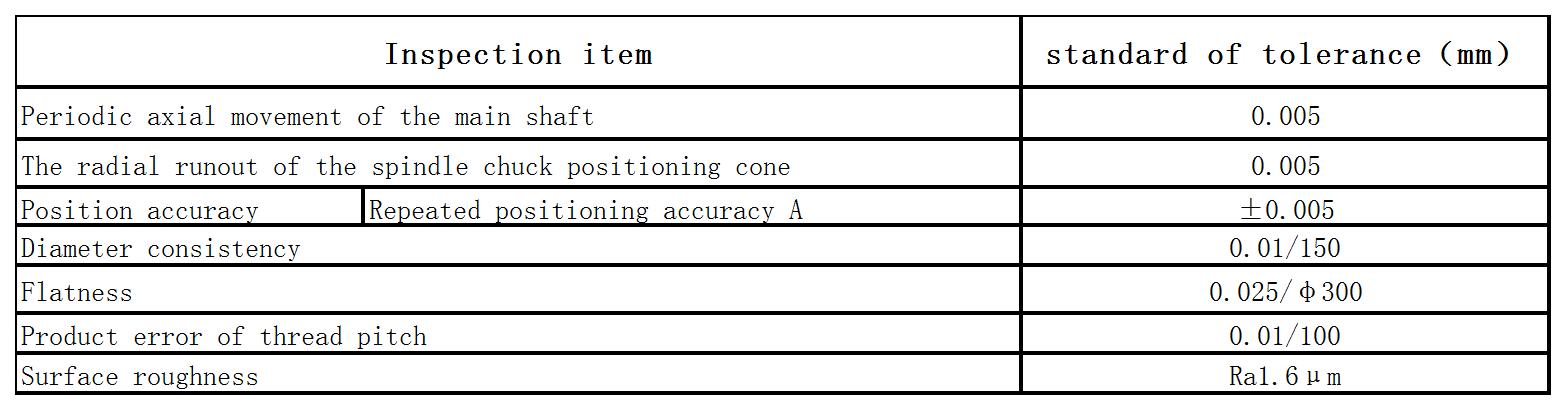

Machine tool accuracy standard:
