High Precision Horizontal CNC Lathe for Metal Cutting

Basic Info

Model No.: CK6150

Brand: GuoSheng

Status: New

Types Of: Horizontal

Maximum Turning Diameter (mm): 500

Maximum Workpiece Length (mm): 1000

Processing Capacity: Heavy Duty

Spindle Bore (mm): 82

Number Of Axes: 2

Positioning Accuracy (mm): ±0.005

Place Of Origin: China

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Retail

Additional Info

Packaging: Wooden case packing

Transportation: Ocean,Land

Place of Origin: CHINA

Port: SHANGHAI,QINGDAO,LIANYUNGANG

Product Description

Hengdachuan Industrial Machinery (Jiangsu) Co., Ltd. is a collection of machine tool production and sales, machine tool accessories and accessories sales, machine tool maintenance and transformation as one of the integrated company. The company has its own brand of CNC lathes, machining centers, sawing machines, drilling machines, grinding machines, metal forming machine tools, special machine customization and other full series of machine tool products, serving the machining industry for many years, has a strong after-sales service team, not only for their own product after-sales service, but also undertake various machine tool maintenance, service in place in time.

This series of machine tools has compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.

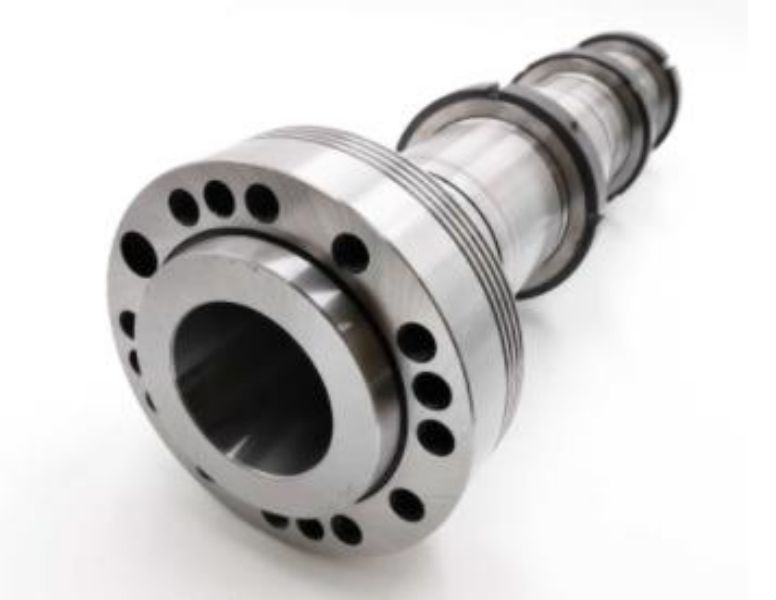

Spindle description:

The spindle with high precision spindle bearing group and precision assembly and dynamic balance test ensures high precision, low noise and strong rigidity of the spindle.

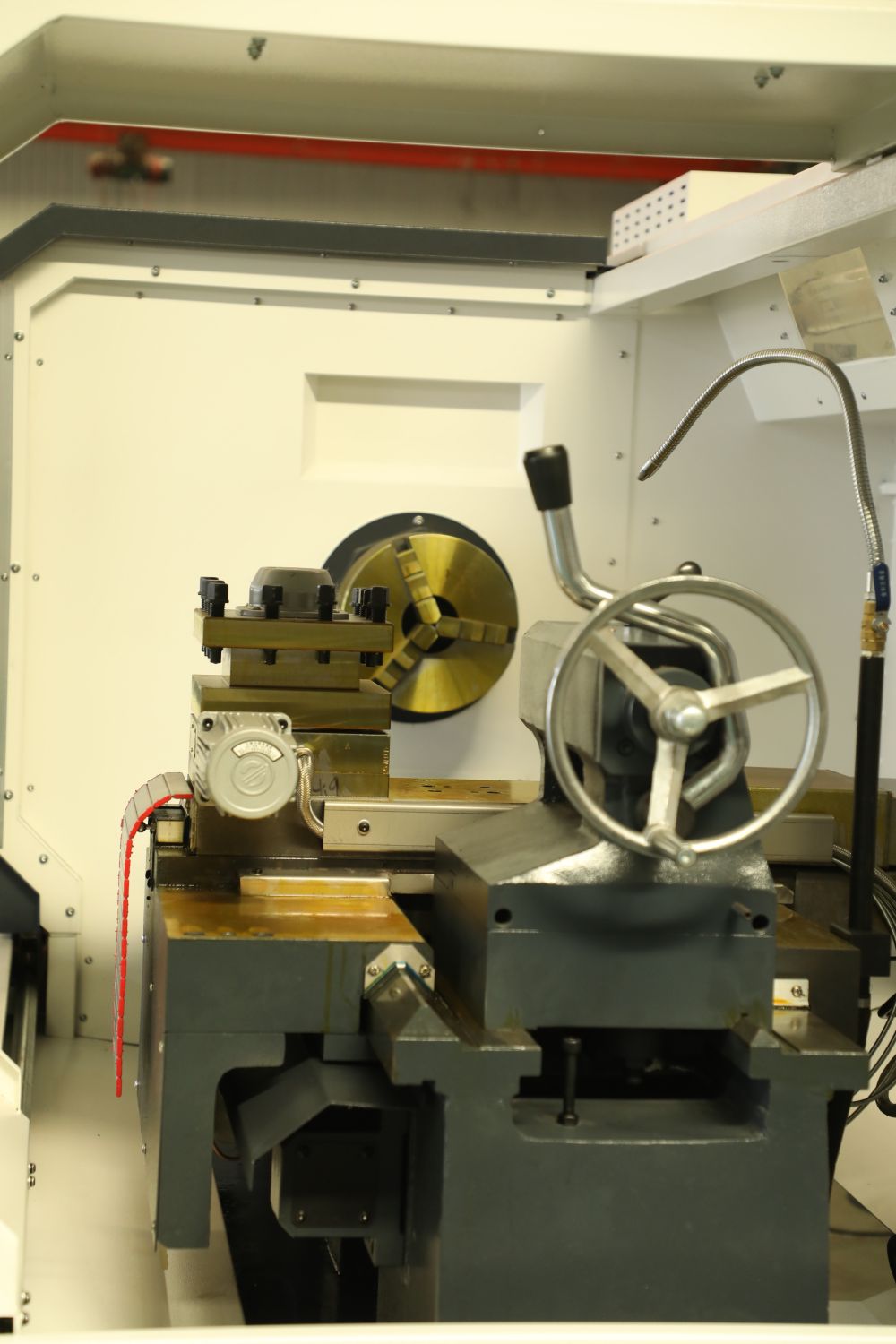

Tool rest description:

The working principle of turboworm transmission, upper and lower gear plate meshing and screw clamping is adopted. It has the advantages of fast rotation, high positioning accuracy and large tangential torque. The sending rotation bit adopts Hall element for long service life.

Chuck description:

Clamping force is large, long service life, strong design hard claw interchangeable soft claw, adjustable claw.

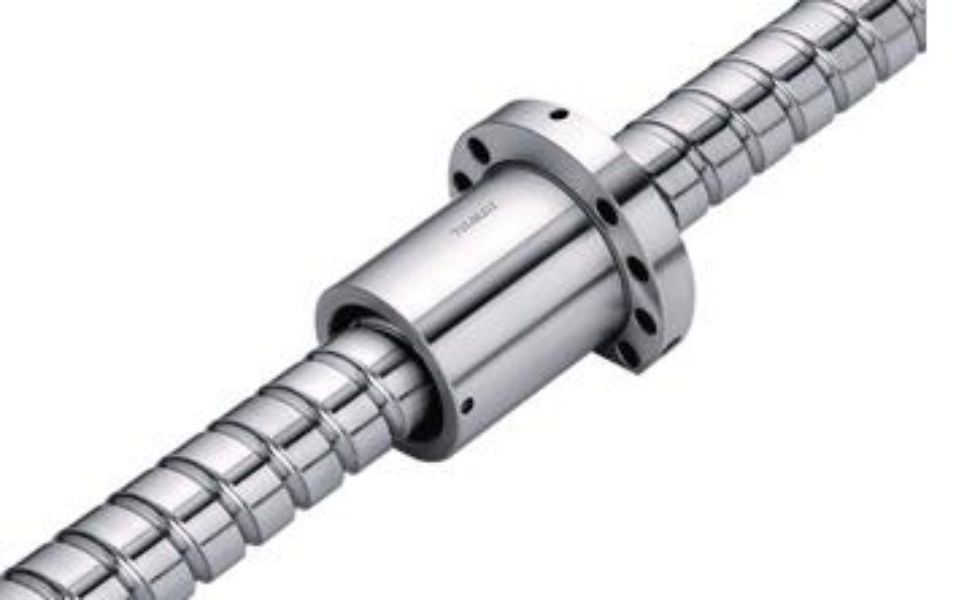

Transmission instructions:

High efficiency, low temperature rise, high precision, high speed, high rigidity, reversibility, long life, low energy consumption, high synchronization, simple maintenance, strong user operability.

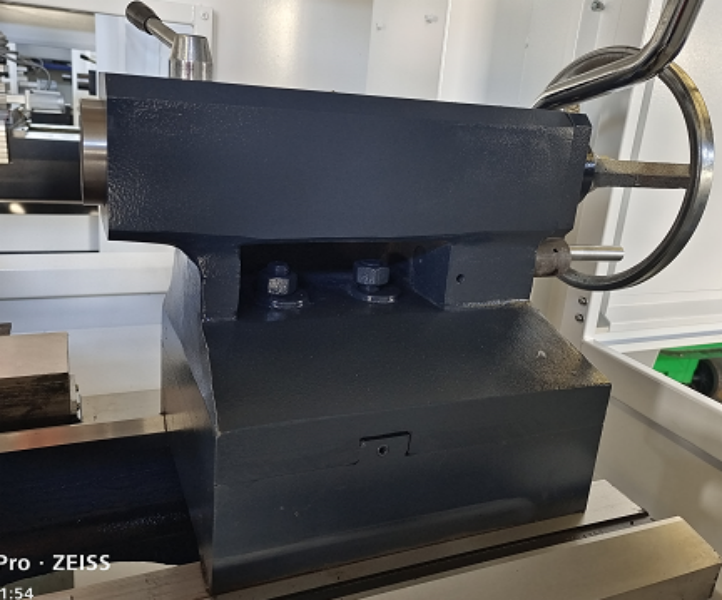

Tail seat description:

The hydraulic tailstock is processed by manual (or hydraulic) adjustment, manual locking, and manual (or hydraulic) jacking of the workpiece.

Lubrication instructions:

Each lubrication point uses a forced automatic lubrication device for fixed point quantitative lubrication of lead screw and guide rail, when there is an abnormal state or insufficient oil, automatically generate a warning signal.

Main technical parameters:

Attention:

1. When installing a chuck or fixture, please pay attention to the limit speed of the selected chuck or fixture.

2, CNC machine tools on the power supply requirements are strict, if the user's power grid fluctuations of more than ±10%, must increase the voltage regulator, otherwise CNC machine tools will not work normally, and even unpredictable results.

3, The machine tool does not update the configuration regularly, the specific parameters should be subject to the latest configuration, the specific details will be detailed in the negotiation.

Machine configuration list：
