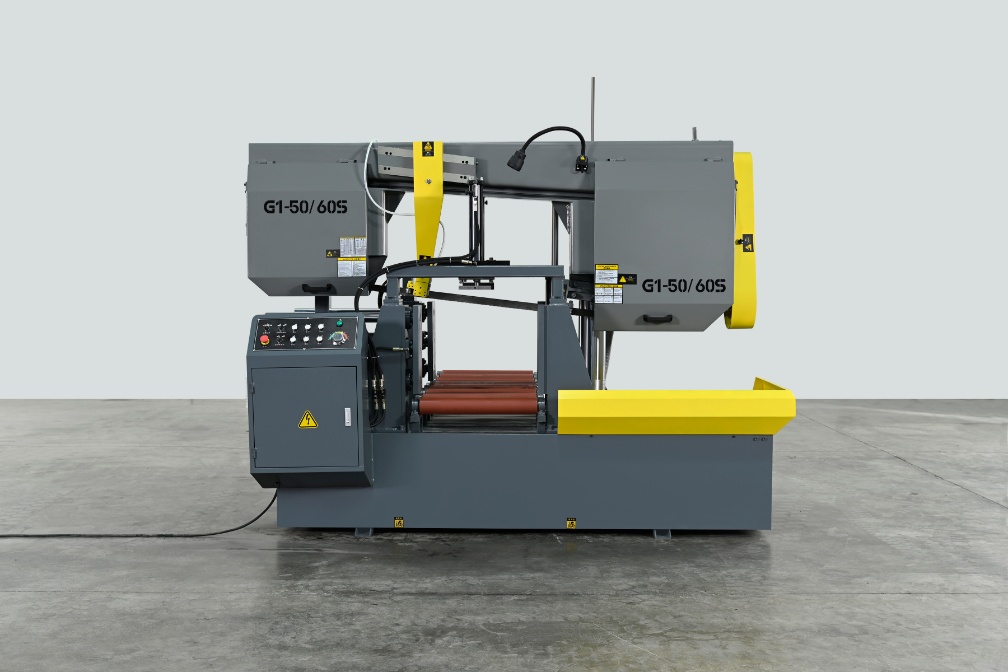

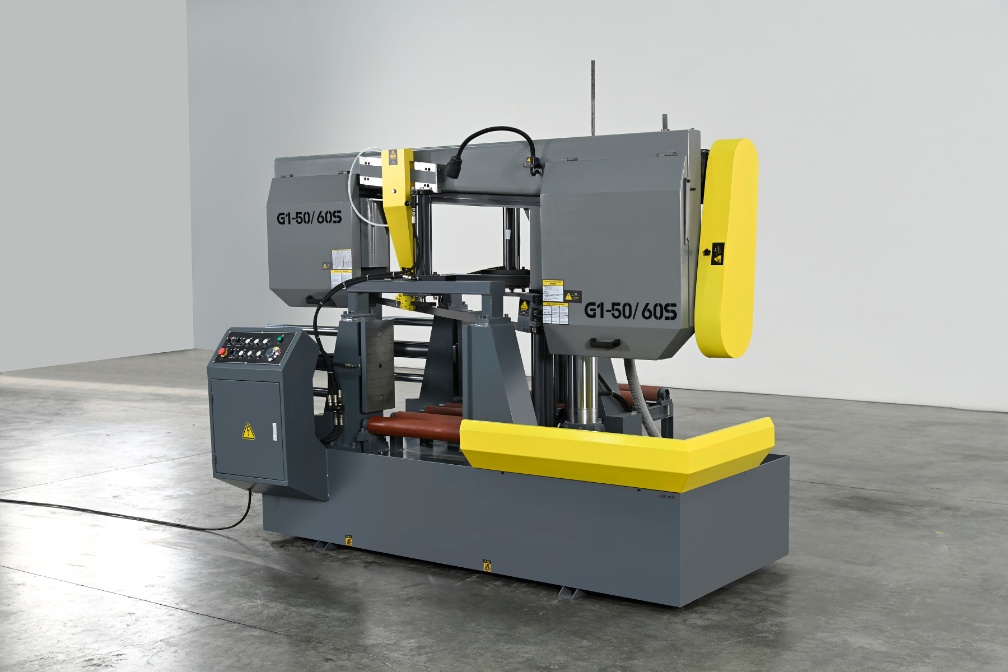

Double column horizontal band saw is an efficient and accurate metal cutting equipment, which is widely used in metal processing industry. The following is a detailed introduction of the double column horizontal band
Saw Machine:
Structural characteristics
Double column horizontal band saw machine mainly consists of the following parts:
Base: Base is welded with high-quality steel plate, after vibration aging treatment, welding deformation is small, mainly used to install the various parts of the machine tool.

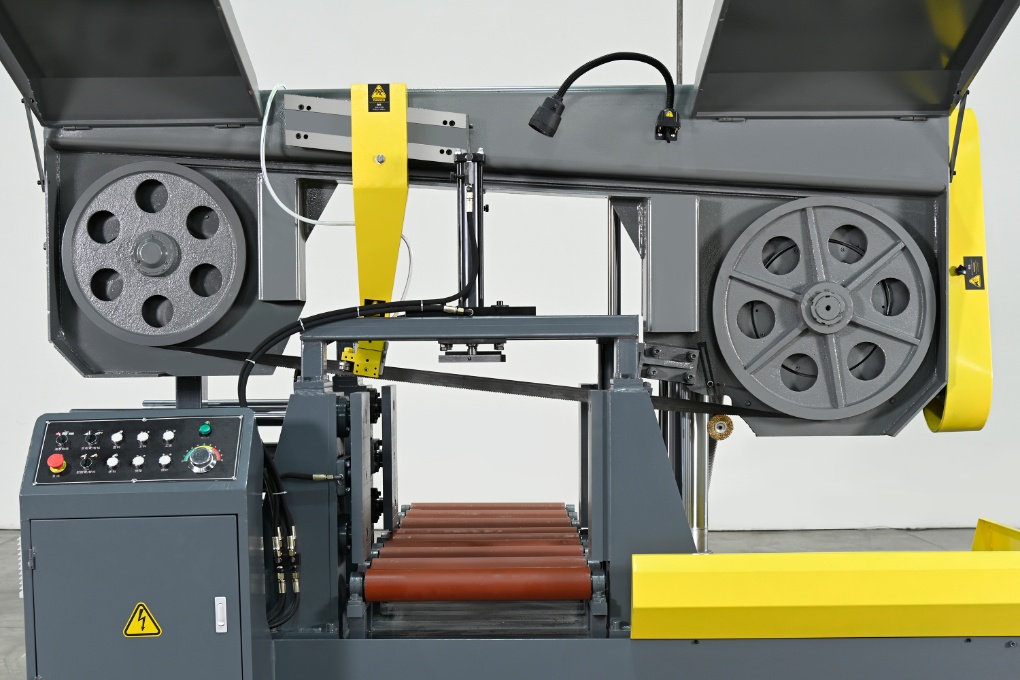

Main transmission system: composed of worm gear box, driving wheel, belt wheel, etc., worm gear box and driving wheel are directly connected, smooth transmission, no impact. The speed of the driving wheel is adjusted through the belt three gears.

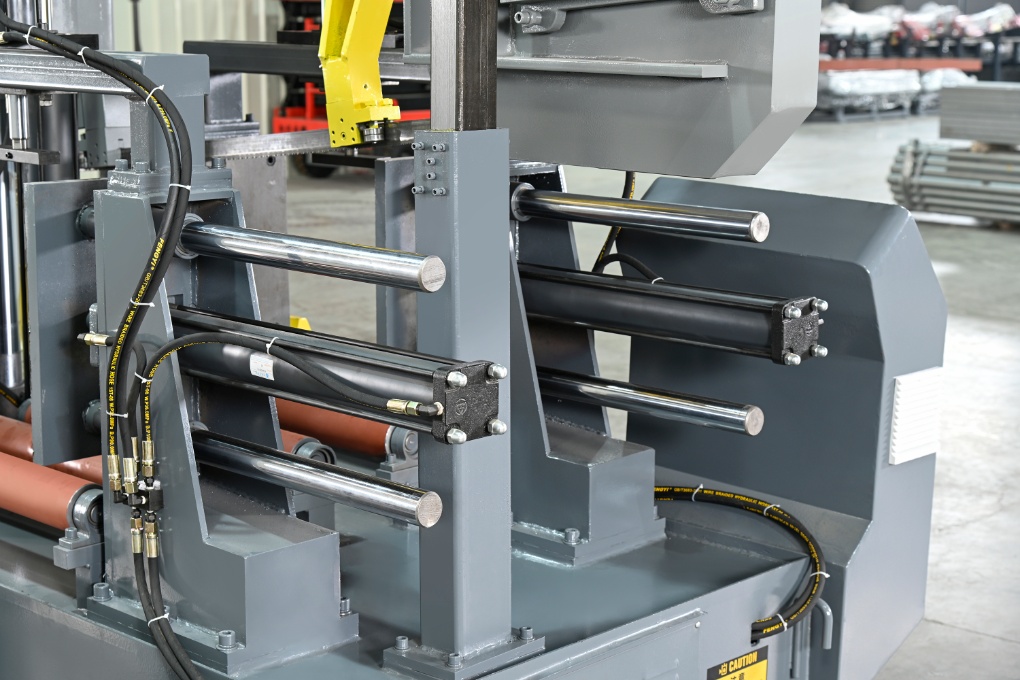

Clamping device: The use of hydraulic vise clamping, through the hydraulic cylinder to drive the vise plate to clamp the workpiece.
Saw frame: The travel cylinder of the saw frame is integrated into the frame to ensure stability and accuracy.

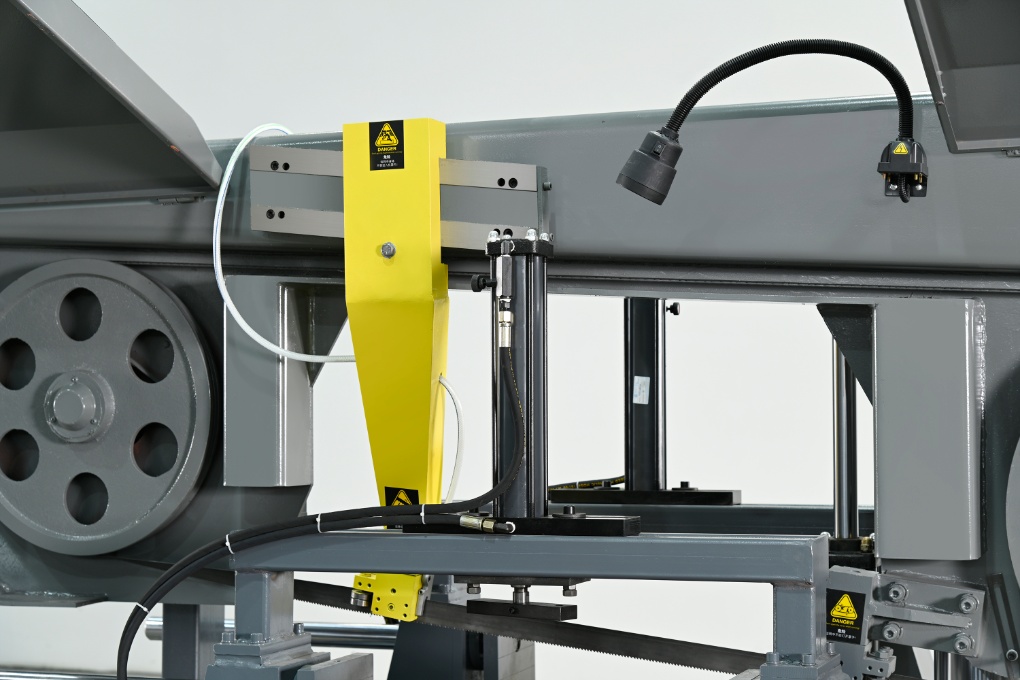

Guide device: guide block structure is scientific and reasonable, prolong the service life of the saw blade.
Left and right columns: double column structure, smooth operation, improve the rigidity of the equipment, reduce vibration and noise.
Saw blade tensioning device: ensure the tension of saw blade in the cutting process, improve the cutting accuracy.
Cooling system: In order to improve the service life and cutting accuracy of the saw blade, a cooling system is designed, and cooling points are set in two guiding positions respectively. The coolant is automatically recovered and recycled.
Hydraulic system: composed of an independent hydraulic station, mainly composed of 1 oil tank, 1 hydraulic motor, 1 oil pump, 1 throttle valve, multiple solenoid valves and so on.

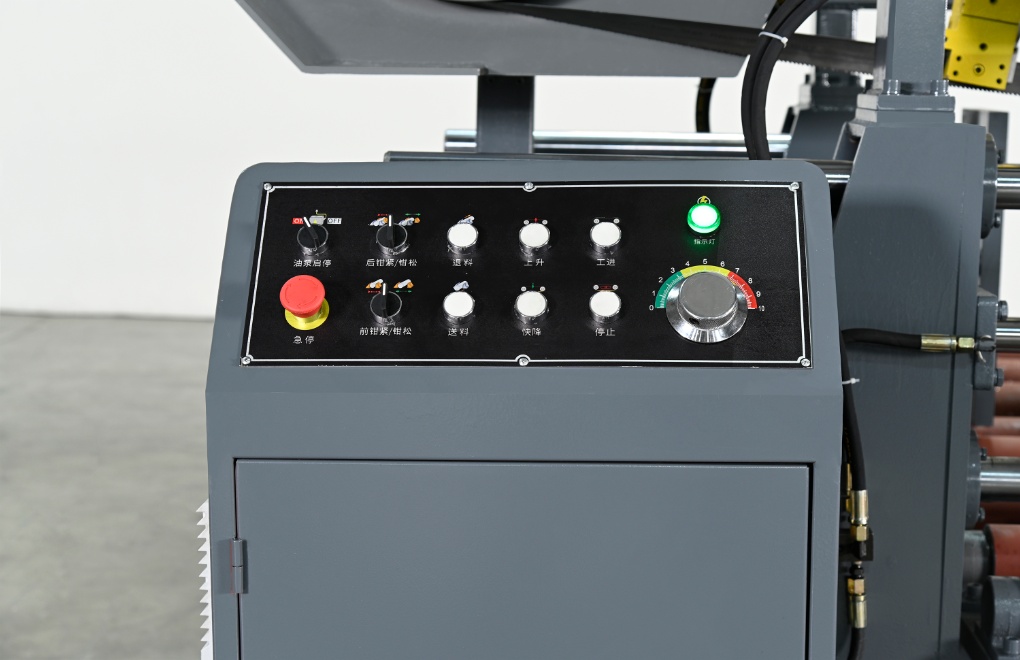

Electrical control system: a separate electrical control cabinet is designed, all electrical components are installed in the electrical cabinet, and each action is interlocked to ensure safe operation.
